Fluorescence, Fluorochrome

FAM

Spectrum Chart

FAM Spectrum
Excitation (㎚) Emission (㎚)
492 518



Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)		 505 (LP) 535/40
(515~555)		 Medium Excitation band,
Bandpass Emission
49002 470/40
(450~490)		 495 (LP) 525/50
(500~550)		 Wide Excitation band,
Bandpass Emission
49011 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Narrow Excitation band,
Bandpass Emission







Fluorescence, Fluorochrome

Ethidium homidimer-1/DNA

Spectrum Chart

Ethidium homidimer-1/DNA Spectrum
Excitation (㎚) Emission (㎚)
527 617



Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39005 540/25
(527.5~552.5)		 565 (LP) 620/60
(590~650)		 Medium Excitation band,
Bandpass Emission
49005 545/30
(530~560)		 570 (LP) 620/60
(590~650)		 Medium Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시-> 문의 주시기 바랍니다.



Fluorescence, Fluorochrome

Eosin

Spectrum Chart

Eosin Spectrum
Excitation (㎚) Emission (㎚)
524 545



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49023 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.





Fluorescence, Fluorochrome

DyLight 800

Spectrum Chart

DyLight 800 Spectrum
Excitation (㎚) Emission (㎚)
770 795

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49037 710/75
(672.5~747.5)		 760 (LP) 810/90
(765~855)		 Very Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시-> 문의 주시기 바랍니다.







Fluorescence, Fluorochrome

DyLight 750

Spectrum Chart

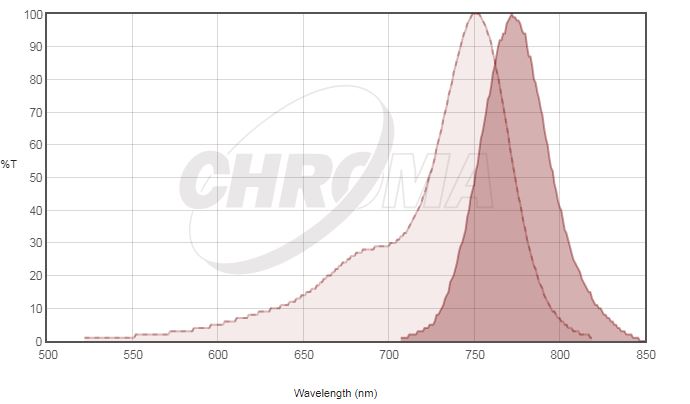

DyLight 750 Spectrum
Excitation (㎚) Emission (㎚)
751 772



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49007 710/75
(672.5~747.5)		 760 (LP) 810/90
(765~855)		 Very Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.







Fluorescence, Fluorochrome

DyLight 680

Spectrum Chart

DyLight 680 Spectrum
Excitation (㎚) Emission (㎚)
677 705



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49022 545/25
(532.5~557.5)		 565 (LP) 605/70
(570~640)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49914 642/20
(632~652)		 647 (LP) 705/72
(669~741)		 For use with laser between 633~650 ㎚

Narrow Excitation band,
Bandpass Emission





Fluorescence, Fluorochrome

DyLight 649

Spectrum Chart

DyLight 649 Spectrum
Excitation (㎚) Emission (㎚)
652 667



Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R2(B) 620/50
(595~645)		 655 (LP) 690/50
(665~715)		 Wide Excitation band,
Bandpass Emission
49006 620/60
(590~650)		 660 (LP) 700/75
(662.5~737.5)		 Very Wide Excitation band,
Bandpass Emission
49009 640/30
(625~655)		 660 (LP) 690/50
(665~715)		 Medium Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49913 635/20
(625~645)		 640 (LP) 655(LP) For use with laser between 627~643㎚

Narrow Excitation band,
Longpass Emission
49914 642/20
(632~652)		 647 (LP) 705/72
(669~741)		 For use with laser between 633~650㎚

Narrow Excitation band,
Bandpass Emission





Fluorescence, Fluorochrome

DyLight 633

Spectrum Chart

DyLight 633 Spectrum
Excitation (㎚) Emission (㎚)
623 645



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49015 605/50
(580~630)		 635 (LP) 670/50
(645~695)		 Very Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.



Fluorescence, Fluorochrome

DyLight 594

Spectrum Chart

DyLight 594 Spectrum
Excitation (㎚) Emission (㎚)
592 616



Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R1(B) 560/40
(540~580)		 600 (LP) 635/60
(605~665)		 Wide Excitation band,
Bandpass Emission
49008 560/40
(540~580)		 600 (LP) 630/75
(592.5~667.5)		 Wide Excitation band,
Bandpass Emission
49306 580/25
(567.5~592.5)		 600 (LP) 625/30
(610~640)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49911 594/10
(589~599)		 594 (LP) 645/75
(607.5~682.5)		 Narrow Excitation band,
Bandpass Emission





Fluorescence, Fluorochrome

DyLight 549

Spectrum Chart

DyLight 549 Spectrum



Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-G(B) 540/25
(527.5~552.5)		 565 (LP) 605/55
(577.5~632.5)		 Narrow Excitation band,
Bandpass Emission
49004 545/25
(532.5~557.5)		 565 (LP) 605/70
570~640)		 Narrow Excitation band,
Bandpass Emission
49305 546/22
(535~557)		 565 (LP) 590/33
(573.5~606.5)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49907 532/10
(527~537)		 532 (LP) 575/50
(550~600)		 For use with laser between 529~535㎚

Narrow Excitation band,
Bandpass Emission
49909 561/10
(556~566)		 532 (LP) 600/50
(575~625)		 For use with laser between 529~535㎚

Narrow Excitation band,
Bandpass Emission
