Fluorescence, Fluorochrome

Di-8-ANEPPS, ratiometric

Spectrum Chart

Di-8-ANEPPS, ratiometric Spectrum
Excitation (㎚) Emission (㎚)
– –



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
71006 440/20
(430~450)

530/20
(420~540)

 565 (LP) 605/54
(590~650)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.











Fluorescence, Fluorochrome

Di-8-ANEPPS non-ratiometric

Spectrum Chart

Di-8-ANEPPS non-ratiometric Spectrum
Excitation (㎚) Emission (㎚)
530 620



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39009 480/30
(465~495)		 505 (LP) 620/60
(590~650)		 Medium Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.





Fluorescence, Fluorochrome

Coumarin

Spectrum Chart

Coumarin Spectrum
Excitation (㎚) Emission (㎚)
384 470



Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
19011 405/30
(390-420)		 440 (LP) 450 (LP) Medium Excitation band,
Longpass Emission
JNO-U(B) 375/28
(361-389)		 415 (LP) 460/50
(435-485)		 Narrow Excitation band,
Bandpass Emission
49000 350/50
(325-375)		 400 (LP) 460/50
(435-485)		 Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.









Fluorescence, Fluorochrome

Citrine

Spectrum Chart

Citrine Spectrum
Excitation (㎚) Emission (㎚)
514 529

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39003 495/20
(485~505)		 515 (LP) 535/30
(520~550)		 Narrow Excitation band,
Bandpass Emission
49003 500/20
(490~510)		 515 (LP) 540/30
(525~555)		 Narrow Excitation band,
Bandpass Emission

  • 레이저 Lighting source  사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚Very Narrow Excitation band,
Bandpass Emission
49905 514/10
(509~519)		 514 (LP) 545/40
(525~565)		 For use with laser between 511~517㎚Narrow Excitation band,
Bandpass Emission
Fluorescence, Fluorochrome

Cerulean

Spectrum Chart

Cerulean Spectrum
Excitation (㎚) Emission (㎚)
433 475

Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39001 435/20
(425~445)		 455 (LP) 480/30
(465~495)		 Narrow Excitation band,
Bandpass Emission
49001 436/20
(426~446)		 455 (LP) 480/40
(460~500)		 Narrow Excitation band,
Bandpass Emission

  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49902 436/20
(426~446)		 442 (LP) 480/40
(460~500)		 For use with laser between 430-445㎚Narrow Excitation band,
Bandpass Emission
49903 436/20
(426~4460)		 442 (LP) 500/40
(480~520)		 For use with laser between 430-445㎚Narrow Excitation band,
Bandpass Emission
Chroma, Filter, Fluorescence

19012

Chroma Filter 19012

19012 Spectrum

FiltersType
AT375/28xEX
 AT415DCBS
AT515lpEM

– Filter set for FluoroGold/Calcofluor White Longpass

  • Main Fluorochromes : FluoroGold
Excitation (㎚)Emission (㎚)
––

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

* FluoroGold VS 19012

19012 필터에 적합한 형광색소

  • Calcofluor White
  • FluoroGold

19012 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm or 3.5mm thick, up to 25mm in diameter
  • Rectangular dichroics up to 26x38mm or 25.5×36, 1mm thick, to fit standard microscope manufacturer filter cubes

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

Fluorescence, Fluorochrome

Calcofluor White

Spectrum Chart

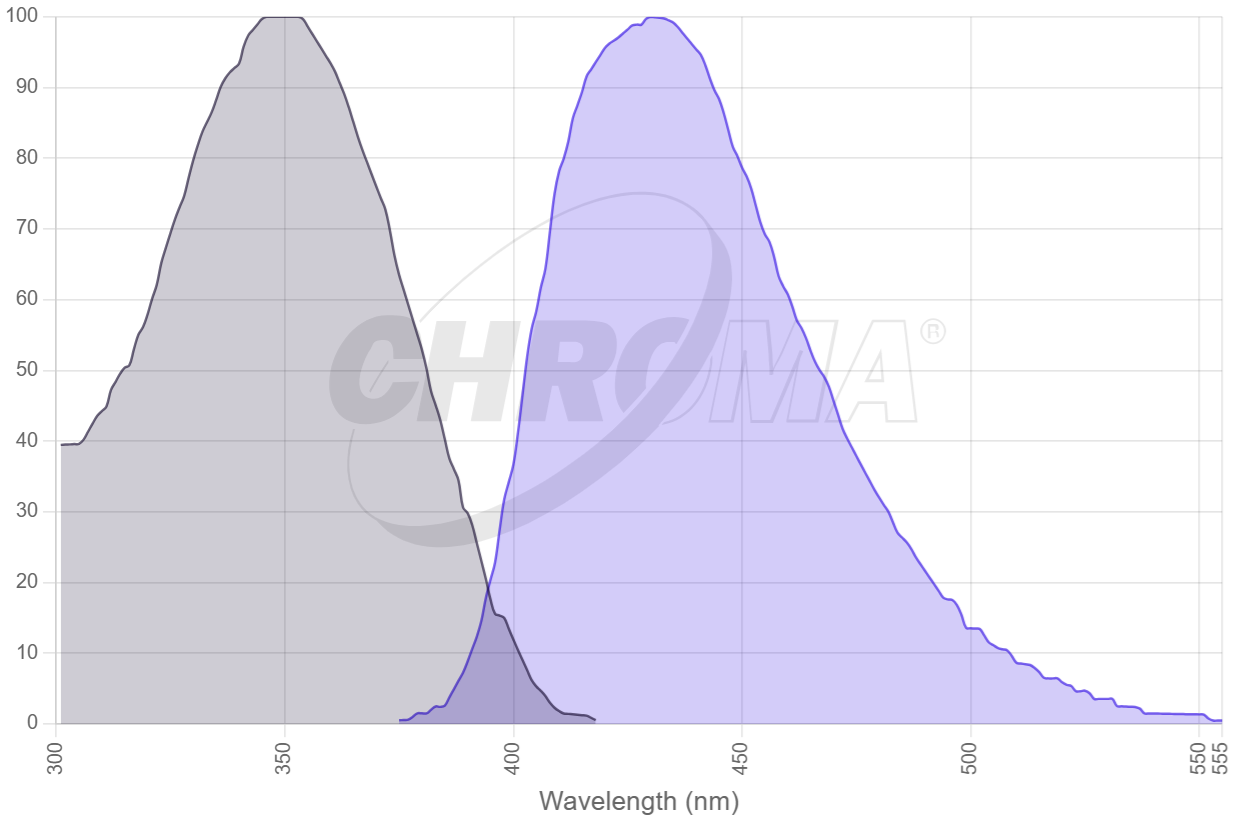

Calcofluor White_Spectra
Calcofluor White_Spectra
Excitation (㎚)Emission (㎚)
350–

Recommended Filter Set

  • 일반 형광 Lighting source
Filter Model No.Excitation filter (㎚)Dichroic mirror (㎚)Emission filter (㎚)Remarks
JNO-U(L)375/28
(361~389)		415 (LP)435 (LP)Medium Excitation band,
Longpass Emission
19012375/28
(361~389)		415 (LP)515 (LP)Medium Excitation band,
Longpass Emission
  • 레이저 Lighting source -> 문의 주시기 바랍니다.
Fluorescence, Fluorochrome

Calcein

Spectrum Chart

Calcein Spectrum

Excitation (㎚) Emission (㎚)
494 517



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)		 505 (LP) 535/40
(515~555)		 Medium Excitation band,
Bandpass Emission
49003 500/20
(490~510)		 515 (LP) 540/30
(525~555)		 Narrow Excitation band,
Bandpass Emission
49011 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission

  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Very Narrow Excitation band,
Bandpass Emission
