Chroma, Filter, Fluorescence

49307

Chroma Filter 49037

49037 Spectrum

49037 Spectrum
FiltersType
ET740/40xEX
 T770lpxrBS
ET780lpEM

– Filter set for Li_Cor for IR dye 800

Excitation (㎚)Emission (㎚)
782805

Spectrum Comparison Fluor and 49037

AlexaFluor 790 VS 49037
AlexaFluor 790 VS 49037

Best with these fluorochromes

49037 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
Chroma, Fluorescence, Fluorochrome

AlexaFluor 790

Spectrum Chart

AlexaFluor 790 Spectrum

Excitation (㎚) Emission (㎚)
782 805

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49037 710/75
(672.5~747.5)		 760 (LP) 810/90
(765~855)		 Very Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시-> 문의 주시기 바랍니다.





Chroma, Fluorescence, Fluorochrome

AlexaFluor 750

Spectrum Chart

AlexaFluor 750 Spectrum

Excitation (㎚) Emission (㎚)
752 779

Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49007 710/75
(672.5~747.5)		 760 (LP) 810/90
(765~855)		 Very Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.







Chroma, Fluorescence, Fluorochrome

AlexaFluor 700

Spectrum Chart

AlexaFluor 700 Spectrum

Excitation (㎚) Emission (㎚)
696 719

Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49022 545/25
(532.5~557.5)		 565 (LP) 605/70
(570~640)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49913 635/20
(625~645)		 640 (LP) 655(LP) For use with laser between 627~643㎚

Narrow Excitation band,
Longpass Emission
49914 642/20
(632~652)		 647 (LP) 705/72
(669~741)		 For use with laser between 633~650㎚

Narrow Excitation band,
Bandpass Emission





Chroma, Fluorescence, Fluorochrome

AlexaFluor 680

Spectrum Chart

AlexaFluor 680 Spectrum

Excitation (㎚) Emission (㎚)
680 702

Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49022 545/25
(532.5~557.5)		 565 (LP) 605/70
(570~640)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49914 642/20
(632~652)		 647 (LP) 705/72
(669~741)		 For use with laser between 633~650 ㎚

Narrow Excitation band,
Bandpass Emission





Chroma, Fluorescence, Fluorochrome

AlexaFluor 647

Spectrum Chart

AlexaFluor 647 Spectrum

Excitation (㎚) Emission (㎚)
649 666

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R2(B) 620/50
(595~645)		 655 (LP) 690/50
(665~715)		 Wide Excitation band,
Bandpass Emission
49006 620/60
(590~650)		 660 (LP) 700/75
(662.5~737.5)		 Very Wide Excitation band,
Bandpass Emission
49009 640/30
(625~655)		 660 (LP) 690/50
(665~715)		 Medium Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49913 635/20
(625~645)		 640 (LP) 655(LP) For use with laser between 627~643㎚

Narrow Excitation band,
Longpass Emission
49914 642/20
(632~652)		 647 (LP) 705/72
(669~741)		 For use with laser between 633~650㎚

Narrow Excitation band,
Bandpass Emission





Chroma, Filter, Fluorescence

49015

Chroma Filter 49015

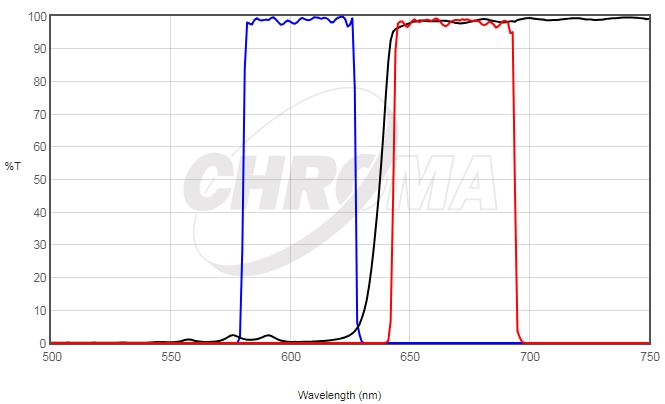

49015 Spectrum

FiltersType
ET605/50xEX
 T635lpxrBS
ET670/50mEM

– Filter set for Alexa Fluor 633

Excitation (㎚)Emission (㎚)
632647

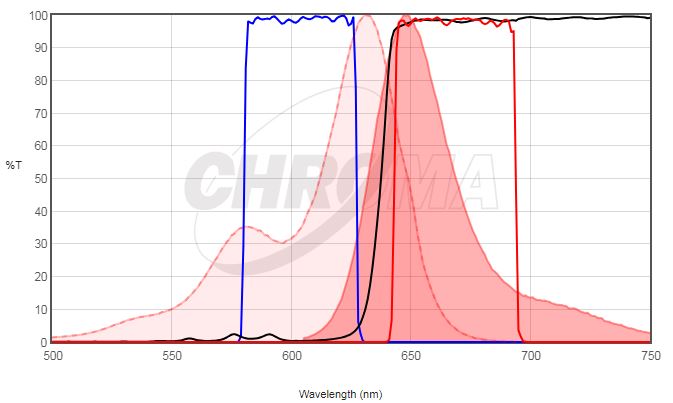

Spectrum Comparison Fluor and 49015

Best with these fluorochromes

49015 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
Chroma, Fluorescence, Fluorochrome

AlexaFluor 633

Spectrum Chart

AlexaFluor 633 Spectrum

Excitation (㎚) Emission (㎚)
632 647



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49015 605/50
(580~630)		 635 (LP) 670/50
(645~695)		 Wide Excitation band,
Bandpass Emission

  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49913 635/20
(625~645)		 640 (LP) 655 (LP) For use with laser between 627~643㎚

Narrow Excitation band,
longpass Emission





Chroma, Fluorescence, Fluorochrome

AlexaFluor 594

Spectrum Chart

AlexaFluor 594 Spectrum

Excitation (㎚) Emission (㎚)
590 617



Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R1(B) 560/40
(540~580)		 600 (LP) 635/60
(605~665)		 Wide Excitation band,
Bandpass Emission
49008 560/40
(540~580)		 600 (LP) 630/75
(592.5~667.5)		 Wide Excitation band,
Bandpass Emission
49306 580/25
(567.5~592.5)		 600 (LP) 625/30
(610~640)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49911 594/10
(589~599)		 594 (LP) 645/75
(607.5~682.5)		 For use with laser 594㎚

Narrow Excitation band,
Bandpass Emission
