카테고리 보관물: Chroma

Chroma, Fluorescence, Fluorochrome

Atto 390

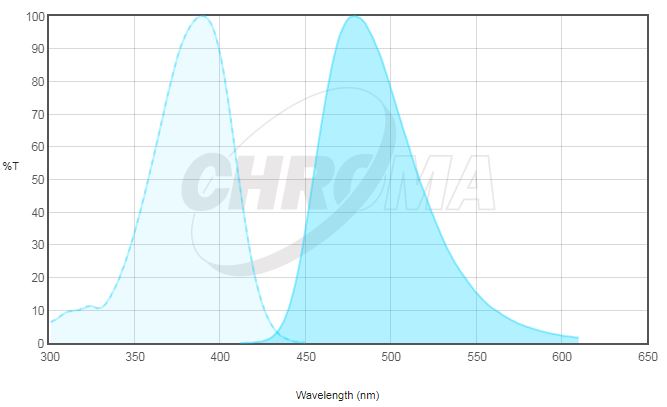

Spectrum Chart

Atto 390 Spectrum
Excitation (㎚) Emission (㎚)
390 479



Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49028 395/25
(382.5-407.5)		 425 (LP) 460/50
(435-485)		 For 395㎚ light sources

Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.







Chroma, Fluorescence, Fluorochrome

AsRed2

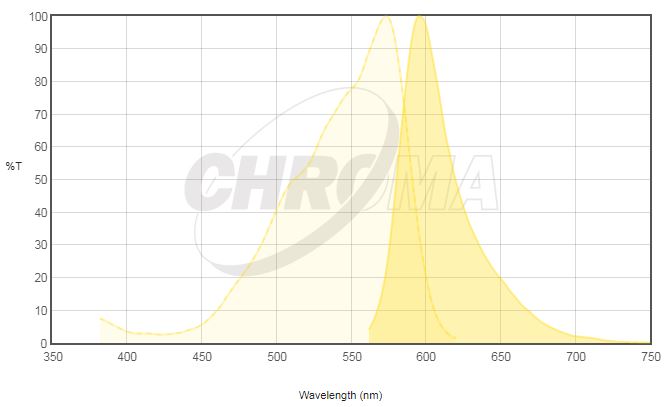

Spectrum Chart

AsRed2 Spectrum
Excitation (㎚) Emission (㎚)
576 592

Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49005 545/30
(530~560)		 570 (LP) 620/60
(590~650)		 Medium Excitation band,
Bandpass Emission
49305 546/22
(535~557)		 565 (LP) 590/33
(573.5~606.5)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49909 561/10
(556~566)		 532 (LP) 600/50
(575~625)		 For use with laser between 529~535㎚

Narrow Excitation band,
Longpass Emission
49910 561/10
(556~566)		 514 (LP) 630/70
(595~665)		 For use with laser between 557~563㎚

Narrow Excitation band,
Bandpass Emission







Chroma, Fluorescence, Fluorochrome

AmCyan

Spectrum Chart

AmCyan Spectrum
Excitation (㎚) Emission (㎚)
458 489



Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39001 435/20
(425~445)		 455 (LP) 480/30
(465~495)		 Narrow Excitation band,
Bandpass Emission
49001 436/20
(426~446)		 455 (LP) 480/40
(460~500)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49902 436/20
(426~446)		 442 (LP) 480/40
(460~500)		 For use with laser between 430-445㎚

Narrow Excitation band,
Bandpass Emission
49903 436/20
(426~4460)		 442 (LP) 500/40
(480~520)		 For use with laser between 430-445㎚

Narrow Excitation band,
Bandpass Emission





Chroma, Fluorescence, Fluorochrome

Allophycocyanin (APC)

Spectrum Chart

Allophycocyanin (APC) Spectrum
Excitation (㎚) Emission (㎚)
650 660



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49006 620/60
(590~650)		 660 (LP) 700/75
(662.5~737.5)		 Very Wide Excitation band,
Bandpass Emission
49015 605/50
(580~630)		 635 (LP) 670/50
(645~695)		 Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49913 635/20
(625~645)		 640 (LP) 655(LP) For use with laser between 627~643㎚

Narrow Excitation band,
Longpass Emission
49914 642/20
(632~652)		 647 (LP) 705/72
(669~741)		 For use with laser between 633~650㎚

Narrow Excitation band,
Bandpass Emission
Chroma, Filter, Fluorescence

49024

Chroma Filter 49024

49024 Spectrum

FiltersType
ET440/40xEX
 T495lpxrBS
ET630/75mEM

49024 필터에 적합한 형광색소

  • Acridine Orange + RNA
  • DiA
  • mKeima Red
  • Pulsar™ 650

49024 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

Chroma, Filter, Fluorescence

49012

Chroma Filter 49012

49012 Spectrum

Chroma_49012
Chroma_49012
FiltersType
ET480/40xEX
 T510pxrxtBS
ET510lpEM

– Filter set for GFP/FITC Longpass

  • Main Fluorochromes :  FITC
Excitation (㎚)Emission (㎚)
490525

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

 * FITC VS 49012

* GFP VS 49012

49012 필터에 적합한 형광색소

  • Acridine Orange + DNA and RNA
  • JC-1 non-ratiometric

49012 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

Chroma, Filter, Fluorescence

Contact us

확인하시고자 하는 시약 및 필터는 자주 사용이 되지 않아 필터의 정보가 아직 준비가 되어 있지 않습니다. 하기의 연락처로 직접 문의 주시면 상담 드릴 수 있도록 하겠습니다.

  • Tel : 02-3473-4188~9
  • E-mail : jhjin@jnoptic.com

상담을 위하여 몇 가지 사항을 체크하여 주시면 보다 빠르게 확인하여 추천을 드릴 수가 있습니다.

[ 필터 주문 시 확인 사항 ]

->하기의 사항 중 확인 가능하신 것만 체크하여 알려주시기 바랍니다.

  • 사용하고자 하는 형광시약 또는 EX / EM 파장대
  • 현미경 및 장비의 모델명
  • 조명장치의 종류 (ex : mercury, xenon, laser 등)

Chroma, Fluorescence, Fluorochrome

CAL Fluor Red 590

Spectrum Chart

CAL Fluor® Red 590 Spectrum

Excitation (㎚)Emission (㎚)
569591

Recommended Filter Set

  • 일반 형광 Lighting source
Filter Model No.Excitation filter (㎚)Dichroic mirror (㎚)Emission filter (㎚)Remarks
JNO-G(B)540/25
(527.5-552.5)		565 (LP)605/55
(577.5~632.5)		Narrow Excitation band,
Bandpass Emission
49005545/30
(530-560)		570 (LP)620/60
(590~650)		Medium Excitation band,
Bandpass Emission
49031569/25
(556.5-581.5)		588 (LP)615/40
(595~635)		Narrow Excitation band,
Bandpass Emission
  • 레이저 Lighting source -> 문의 주시기 바랍니다.
Chroma, Fluorescence, Fluorochrome

CAL Fluor Orange 560

Spectrum Chart

CAL Fluor® Orange 560 Spectrum
Excitation (㎚)Emission (㎚)
538559

Recommended Filter Set

  • 일반 형광 Lighting source 사용시
Filter Model No.Excitation filter (㎚)Dichroic mirror (㎚)Emission filter (㎚)Remarks
49014530/30
(515~545)		550 (LP)575/40
(555~595)		Medium Excitation band,
Bandpass Emission
49023480/40
(460~500)		510 (LP)535/50
(510~560)		Wide Excitation band,
Bandpass Emission
  • 레이저 Lighting source 사용시 -> 문의 주시기 바랍니다.
Chroma, Fluorescence, Fluorochrome

CAL Fluor Gold 540

Spectrum Chart

CAL Fluor® Gold 540 Spectrum
Excitation (㎚)Emission (㎚)
522544

Recommended Filter Set

  • 일반 형광 Lighting source
Filter Model No.Excitation filter (㎚)Dichroic mirror (㎚)Emission filter (㎚)Remarks
49014530/30
(515~545)		550 (LP)575/40
(555~595)		Medium Excitation band,
Bandpass Emission
49023480/40
(460~500)		510 (LP)535/50
(510~560)		Wide Excitation band,
Bandpass Emission
  • 레이저 Lighting source -> 문의 주시기 바랍니다.
