카테고리 보관물: AcquCAM

AcquCAM, PCO

Sensicam QE

Sensicam QE

cooled digital 12bit CCD camera system

PCO사에서 제작한 Sensicam QE 카메라는 고성능 cooled digital 12bit CCD 로 보다 향상된 electronic technology 시스템입니다.

  열전자 cooling 센서는 이미지의 noise를 매우 적게 줄여주며 고감도로 작동하게 해줍니다.

  뛰어난 Quantum efficiency (up to 62%)를 자랑하며 고속의 serial data link(fiber optic link available)로 PC에 연결됩니다.

Sensicam QE 저광량 카메라 시스템은 Fluorescence imaging, confocal & light microscopy 와 같이 고감도이며 저잡음을 필요로하는 분야에 최고로 적합합니다.

■ Features

  ▲ super quantum efficiency up to 65%

  ▲ extremely low noise, down to 4e- rms

  ▲ 12bit dynamic range

  ▲ thermo-electrical cooling (Peltier) down to -12°C

  ▲ high resolution (1376 x 1040pixel)

  ▲ shutter / exposure times from 500ns – 1000s

  ▲ binning (horizontal & vertical)

  ▲ region of interest (ROI)

  ▲ 10 frames per second at full CCD resolution

  ▲ remote control up to 1500m distance (with fiber optic link)

  ▲ free software camware included



■ Quantum Efficiency



■ Specification



■ Examples of applications

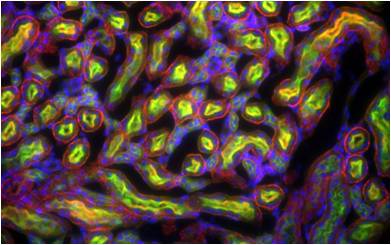

Fluorescence in-situ hybridization (FISH) of an endothel cell.



AcquCAM, Camera, Fluorescence, Physiology

AcquCAM 23S

AcquCAM 23S

(Down load Catalog ACQUCAM 23S)

  • USB 3.0 Monochrome Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O

AcquCAM 23S
EXMOR Sensors: Next-generation imaging sensors based on CMOS, increase the strength and reduce noise.



High sensitivity camera available from visible to IR range

20151120_1(CA1 pyramidal neuron)
Apply high sensitivity EXMOR sensor with additional filter block visible range, IR Cut filter image could be observed.



Available wider range of observation

AcquCAM 23S_6
By applying a 1 / 1.2 ” EXMOR sensor, you can observe a wider range of superior sensitivity image.
These images were shot by AcquCAM 23S Package.

High sensitivity and fast frame image

AcquCAM 23S_(CA3 pyramidal neuron)

AcquCAM 23S_(Dentate gyrus Granule cell)
To maximize the range of imaging possible observation with fast frame 54Fps and high sensitivity 0.015 lx .

[Specification]

Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats

& Frame rate

 1920×1200 Y16 @ 25 fps

1920×1200 Y800 @ 54 fps
Sensitivity 0.015 lx
Exposure time 1/100000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g



AcquCAM, Camera, Fluorescence

AcquCAM 23G

AcquCAM 23G

(Down load Catalog ACQUCAM 23G)

  • USB 3.0 Color Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O

AcquCAM 23G

The displays live digital images with gradual smoothness and combines exceptional resolution  with faithful color reproduction.The new sensors feature a global shutter function and able to capture a high-speed moving image without focal plane distortion. High-speed processing, low noise and low power dissipation by using column-parallel A/D conversion. equipped with trigger mode, and the external pulse can control accumulation time. The Sensor also have a pulse output function to indicate respective conditions during shutter operation and can be coordinated with peripheral circuits. High-definition images can be displayed live at a rate of high frames per second. without compression. Such imaging quality enables even the finest cellular regions to be observed clearly and distinctly without deterioration. While focusing is made stress free.

Universal camera- wide range of image acquisition  is available

Setting function of variety color images

AcquCAM23_16

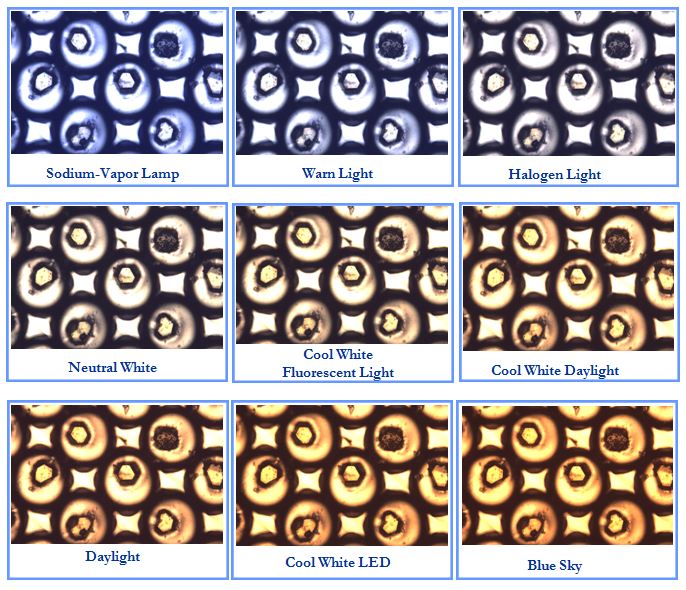

With wide range of color temperature setting function, you can obtain a clear image of high sensitivity in accordance with the characteristics of samples you want to observe.

Live sharpness adjustment

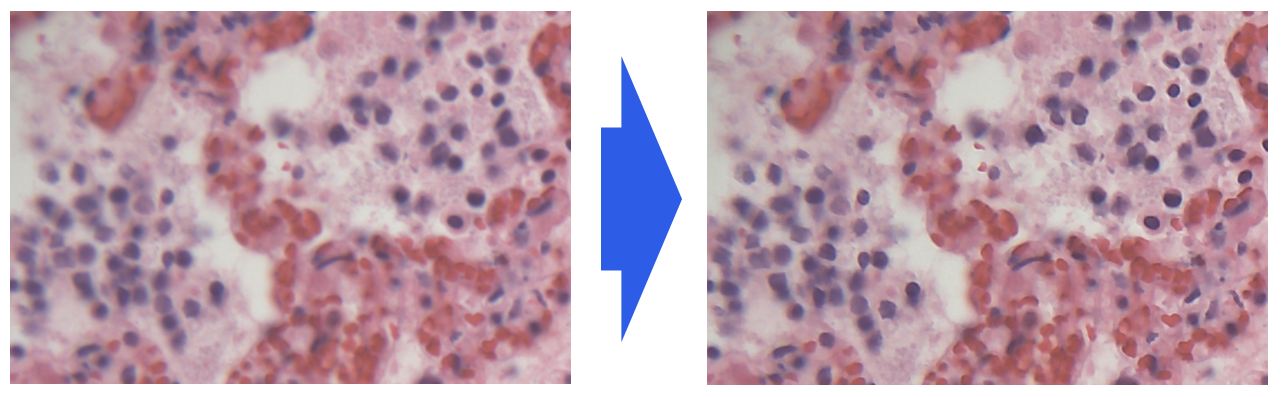

You can observe and obtain sharp images by applying the sharpness function even when the live video output
You can observe and obtain sharp images by applying the sharpness function even when the live video output
[Specification]
Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats& Frame rate 1920×1200 RGB32 @ 54 fps1920x1200 Y16 @ 25 fps

1920×1200 Y800 @ 54 fps
Dynamic range 8 / 12 bit
Exposure time 1/100000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass

65 g
AcquCAM, Camera

AcquCAM Silver3

AcquCAM Silver3

(Down load Catalog_ACQUCAM SILVER3)

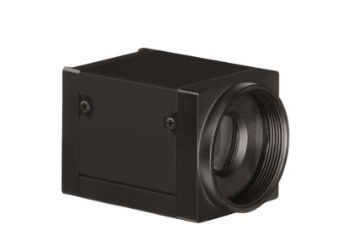

AcquCAM Silver3

 AcquCAM Silver3 camera has 1/1.8 CCD Color Sensor with USB 3.0 and works with resolution of 1600×1200 @ 20fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD USB 3.0 camera
  • High sensitive monochrome
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Apply Pseudo color for live fluorescence

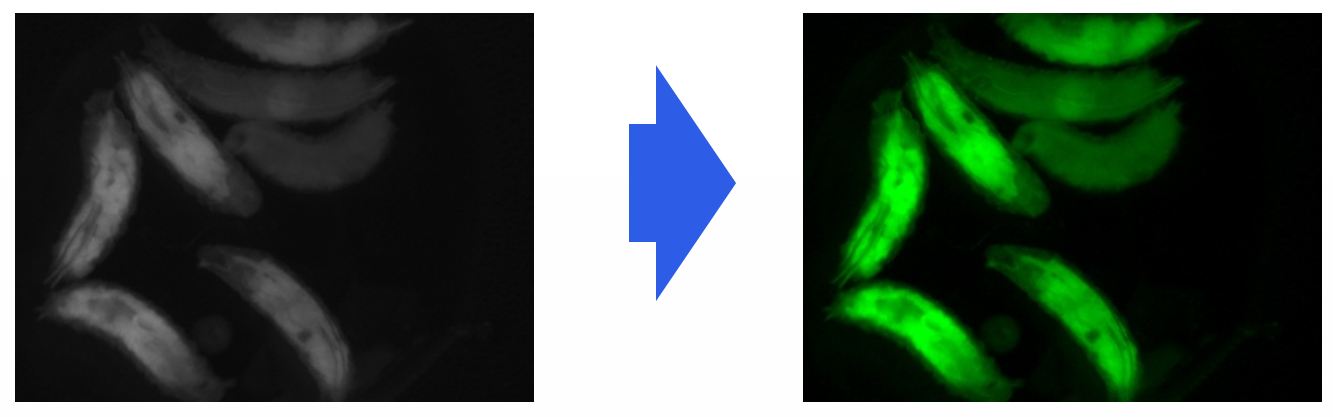

Increased resolution by applying PSEUDO COLOR function when observing fluorescence image.
Increased resolution by applying PSEUDO COLOR function
when observing fluorescence image.

Apply Pseudo color for live fluorescence

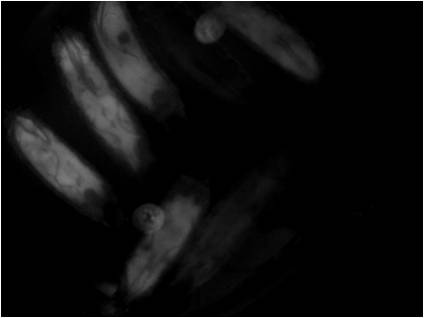

Shooting images of fluorescence sample
Shooting images of fluorescence sample

Emphasis function on variety of images

Getting fast and clear image  with general light source

Shooting by stereo microscope and LED lighting source
Shooting by stereo microscope and
LED lighting source

[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats& Frame rate 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.05 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g
AcquCAM, Camera

AcquCAM Gold3

AcquCAM Gold3

(Down load Catalog_ACQUCAM GOLD3)

 AcquCAM Gold3 camera has 1/1.8 CCD Color Sensor with USB 3.0 and works with resolution of 1600×1200 @ 20fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD USB 3.0 camera
  • Color, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

General purpose CCD camera of in-depth image

Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.

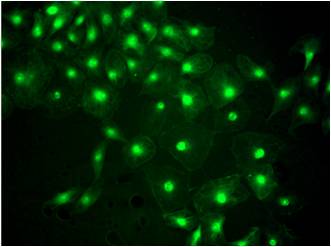

Obtain sharp images quickly

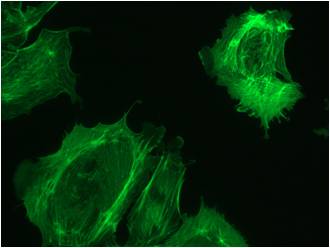

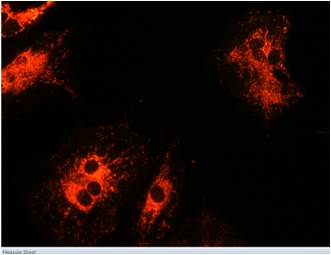

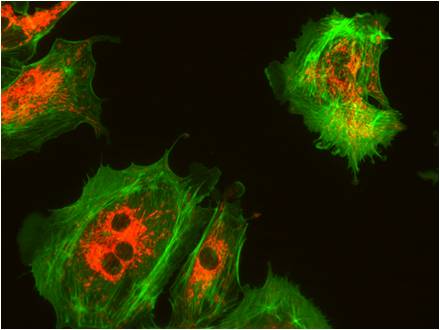

Rapid and smooth frame of Max. 20 fps These images were shot by AcquCAM Gold3 Package.
Rapid and smooth frame of Max. 20 fps
These images were shot by AcquCAM Gold3 Package.

Getting fast and clear image with general light source

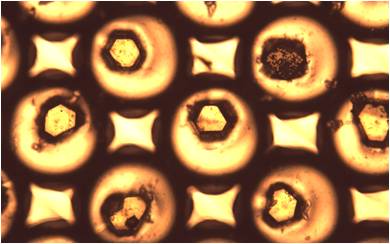

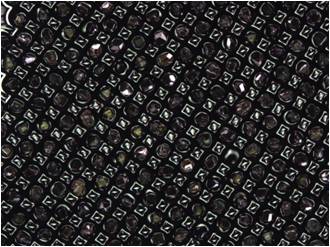

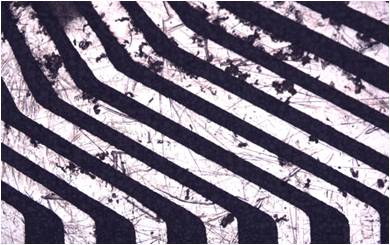

Metal specimen with shoot by stereo microscope and LED lighting source
Metal specimen with shoot by
stereo microscope and LED lighting source

[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats& Frame rate 1600×1200 RGB32 @ 20, 15, 7.5, 3.75 fps
1600×1200 Y800 @ 20, 15, 7.5, 3.75 fps
1600×1200 Y16 @ 20, 15, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass

65 g



AcquCAM, Camera, Fluorescence, Physiology

AcquCAM Pro/S3

( Down load Catalog_ACQUCAM-PRO/S3 )

AcquCAM Pro/S3

AcquCAM Pro/S3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive mono CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.

  • 1.2 Mega pixel CCDcamera
  • Monochrome, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Apply Pseudo color for live fluorescence

Apply Pseudo color for black live fluorescence

AcquCAM Pro S3_6

Emphasis function for variety images

Getting clear image with general light source

[Specification]

SpecDescription
Size1/3 inch
ResolutionH: 1280, V: 960
Pixel sizeH: 3.75 µm, V: 3.75 µm
Video formats & Frame rate1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps 1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps
Sensitivity0.015 lx
Exposure time1/10000 to 30 s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
AcquCAM, Camera, Fluorescence

AcquCAM 5U3

Down load Catalog _ AcquCAM 5U3

AcquCAM5/U3

 JNOPTIC AcquCAM5/U3 USB 3.0 camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.

Utilizing a color CMOS sensor up to 2592×1944, this camera features a variety of input, output, strobe, and trigger options via an external Hirose port. With up to 15fps and a trigger delay of less than 5 micro seconds, this USB 3.0 camera boasts a low cost and highly versatile imaging solution.

  • 5 Mega pixel CMOS camera
  • Color, Up to 15 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Wide useful camera for various field

Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images. ※ These images were shot by AcquCAM 5/U3 Package.
With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM
on variety images, you could acquire cleaner and sharper images.
※ These images were shot by AcquCAM 5/U3 Package.

Live image observation of rapid frame

Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards
Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards

[Specification]

SpecDescription
Size1/2.5 inch
ResolutionH: H: 2592, V: 1944
Pixel sizeH: 2.2 µm, V: 2.2 µm
Video formats & Frame rateMAX : 2592×1944 @ 15 fps MIN : 640×480 @ 132 fps
Sensitivity0.05 lx
Exposure time1/20000 to 1/4 s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g



AcquCAM, Camera, Fluorescence

AcquCAM Silver

AcquCAM Silver

( Down load Catalog_ACQUCAM SILVER )

AcquCAM Silver

 JNOPTIC USB CCD Camera, AcquCAM Silver serves to acquire, visualize, archive and analyze images. They are used in production automation, quality assurance, logistics and safety engineering applications and in medicine and science. Developers and system engineers prefer JNOPTIC USB CCD cameras due to ease operation for system integration.

AcquCAM Silver camera has 1/1.8 CCD Mono Sensor with USB 2.0 and works with resolution of 1600×1200 @ 12fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD camera
  • Mono, progressive scan
  • USB 2.0 interface
  • 1600×1200 pixel resolution
  • Up to 12 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

Apply Pseudo color for live fluorescence

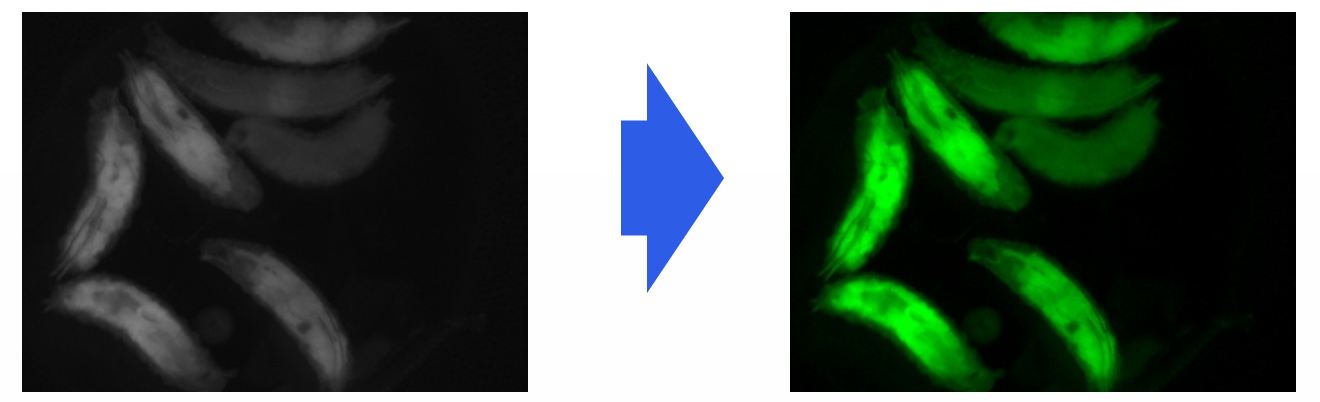

Increased resolution by applying PSEUDO COLOR function when observing fluorescence image.
Increased resolution by applying PSEUDO COLOR function
when observing fluorescence image.

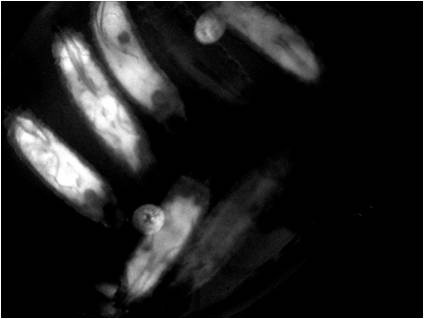

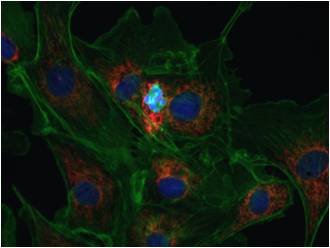

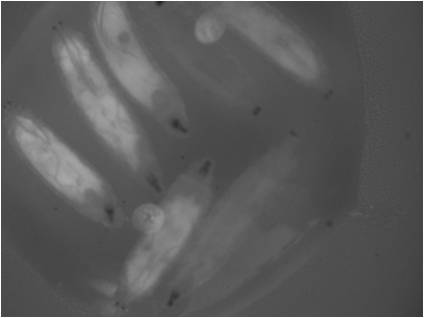

Shooting images of fluorescence sample
Shooting images of fluorescence sample

Emphasis function on variety of images

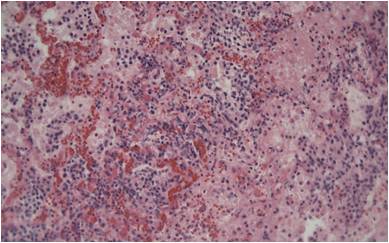

Getting fast and clear image  with general light source

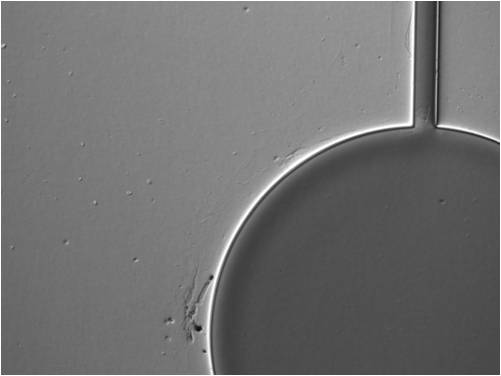

AcquCAM Silver_11

[Specification]
Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats& Frame rate 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g
AcquCAM, Camera

AcquCAM Gold

Down load Catalog ACQUCAM GOLD

AcquCAM Gold

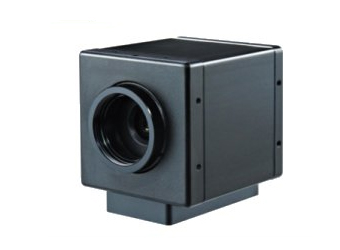

 JNOPTIC USB CCD Camera, AcquCAM Gold serves to acquire, visualize, archive and analyze images. They are used in production automation, quality assurance, logistics and safety engineering applications and in medicine and science. Developers and system engineers prefer JNOPTIC USB CCD cameras due to ease operation for system integration.

AcquCAM Gold camera has 1/1.8 CCD Color Sensor with USB 2.0 and works with resolution of 1600×1200 @ 12fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD camera
  • Color, progressive scan
  • USB 2.0 interface
  • 1600×1200 pixel resolution
  • Up to 12 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

General purpose CCD camera of in-depth image

Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.

Obtain sharp images quickly

AcquCAM Gold_13

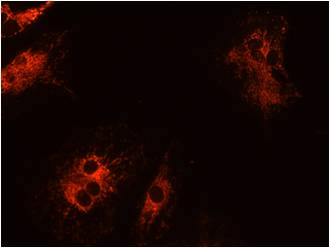

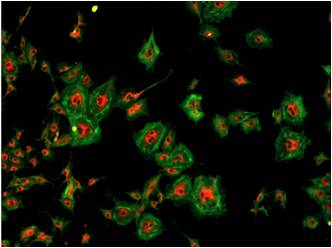

Composite images of fluorescence sample image
These images were shot by AcquCAM Gold Package.

Getting fast and clear image even with general light source

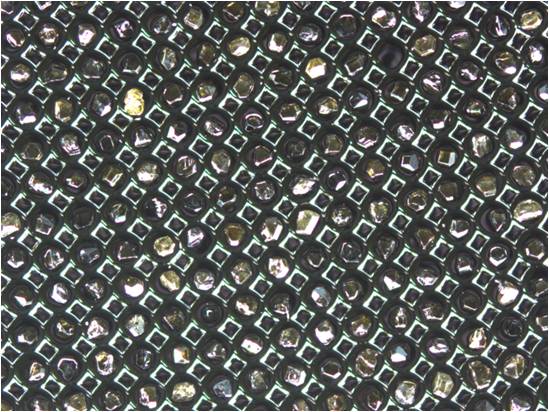

Metal specimen with shoot by stereo microscope and LED lighting source
Metal specimen with shoot by stereo microscope and LED lighting source

[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats & Frame rate 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g
AcquCAM, Camera

AcquCAM Pro/U

AcquCAM Pro/U

Down load Catalog _ AcquCAM Pro/UAcquCAM Pro/U

AcquCAM Pro/U offers perfect resolution of the images as a professional microscope digital camera. This is CCD that provides more sophisticated image than CMOS, and offers 1.3 mega pixel high-definition images. With convenience of use and fast transfer rate of 400Mbps, high quality images can be observed at rate of 15 frames per second.

  • 1.3 Mega pixel CCD camera
  • Color, Progressive scan
  • Lower fixed Pattern Noise
  • Auto white balance support
  • RGB Bayer video output
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

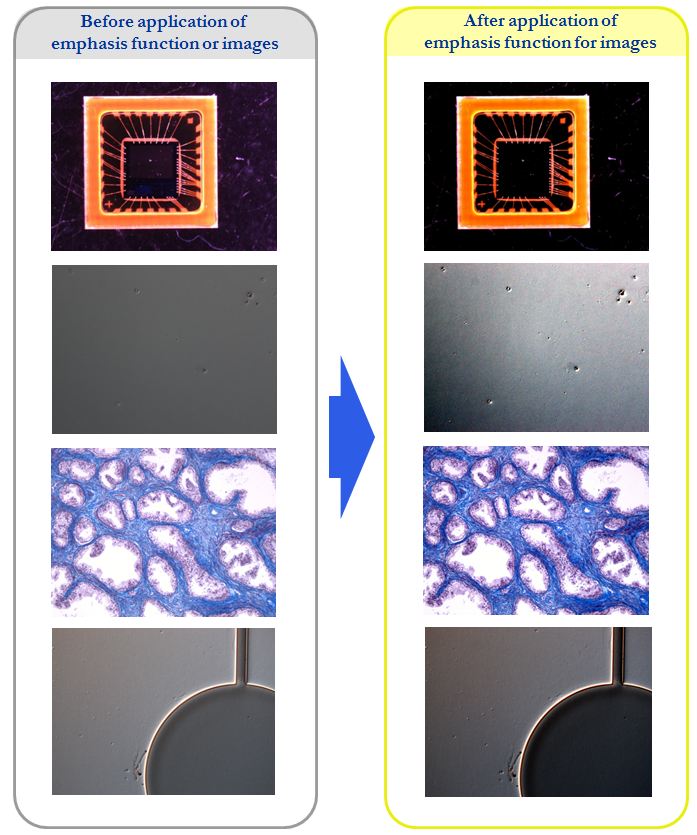

Minimum noise of  wide use CCD Camera

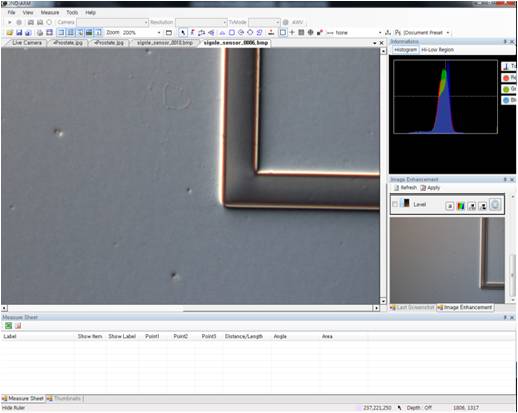

Black balance and Auto Level of ARM on variety images

AcquCAM Pro U_17

Minimum noise even long-time exposure

AcquCAM Pro U_16

[Specification]

Spec Description
Size 1/2 inch
Resolution H: 1280, V: 960
Pixel size H: 4.65 µm, V: 4.65 µm
Video formats & Frame rate 1280×960 UYVY @ 7.5, 3.75 fps
1280×960 BY8 @ 15, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g
