AcquCAM Specification Comparison Table

2026년 3월 29일 J.H.JIN

일반 현미경용 카메라

MODEL No.	BKONV KON3.1	AcquCAM 3	AcquCAM 5/U3
Connect	USB 2.0	USB 2.0	USB 3.0
Sensor	CMOS	CMOS	CMOS
Chip Size	1/2 inch	1/2 inch	1/2.5 inch
Resolution	2048×1536	2048×1536	2592×1944
FPS(Max)	8	10	15
SHUTER		rolling	rolling
Trigger	x	x	o
Shutter	128㎲ ~ 2s	100㎲ ~ 4s	50㎲ ~ 0.25s
IR Cut	650㎚ ~	650㎚ ~	650㎚ ~
Sensitivity	–	–	0.05 ㏓
Pixel Size (µm)	H: 3.2㎛, V: 3.2㎛	H: 3.2㎛, V: 3.2㎛	H:2.2㎛, V:2.2㎛

형광 관찰이 가능한 고감도 카메라

MODEL No.	AcquCAM Pro/G3	AcquCAM 3G	AcquCAM 5G	AcquCAM 23GR2
Connect	USB 3.0	USB 3.0	USB 3.0	USB 3.0
Sensor	CCD	Pregius	Pregius	Pregius
Chip Size	1/3 inch	1/1.8 inch	2/3 inch	1/1.2 inch
Resolution	1280×960	2048×1536	2448×2048	1920×1200
FPS(Max)	30	60	35	162
SHUTER	global	global	global	global
Trigger	o	o	o	o
Shutter	100㎲~ 30s	20 ㎲ ~ 30s	25 ㎲ ~ 4s	20㎲ ~ 30s
IR Cut	650㎚ ~	650㎚ ~	650㎚ ~	Option: 700㎚~
Sensitivity	0.05 ㏓	0.05 ㏓	0.05 ㏓	0.05 ㏓
Pixel Size (µm)	H:3.75㎛, V:3.75㎛	H:3.45㎛, V:3.45㎛	H:3.45㎛, V:3.45㎛	H:5.86㎛, V:5.86㎛

전기 생리학 실험 전용 카메라

MODEL No.	AcquCAM Silver	AcquCAM Pro/S3	AcquCAM 23S2
Connect	USB 2.0	USB 3.0	USB 3.0
TYPE	Mono	Mono	Mono
Sensor	CCD	CCD	Pregius
Chip Size	1/1.8 inch	1/3 inch	1/1.2 inch
Resolution	1600×1200	1280×960	1920×1200
FPS(Max)	12	30	162
SHUTER	global	global	global
Trigger	x	o	o
Shutter	100㎲ ~ 30s	100㎲ ~ 30s	20㎲ to 30s
IR Cut	Option: 700㎚ ~	Option: 700㎚ ~	Option: 700㎚ ~
Sensitivity	0.05 ㏓	0.015 ㏓	0.015 ㏓
Pixel Size (µm)	H:4.4㎛, V:4.4㎛	H:3.75㎛, V:3.75㎛	H:5.86㎛, V:5.86㎛

AcquCAM 카메라 현미경 관찰법 대응법

Setup Driver & Software Download

Touptek

XCAM1080PHB

2026년 2월 25일 J.H.JIN

Product Introduction

XCAM1080PHX series cameras are designed by ToupTek as cameras with multiple output methods (HDMI+Wi-Fi+SD card), where the X in XCAM stands for multi-interface). They adopt ultra-high performance CMOS sensors. The cameras can be directly connected to HDMI displays, connected to computers and other smartphones or tablets via Wi-Fi, and can also save images and videos to SD cards for on-site analysis and subsequent research.

The greatest feature of XCAM1080PHX series cameras is that the camera itself is equipped with an embedded ARM core, which can display various camera control functions directly on HDMI displays in the form of control panels. Furthermore, users can directly control various camera parameters using a USB mouse interface mouse. Additionally, the HDMI display interface has various toolbar buttons at the bottom for user operation.

When the mouse is unplugged and a USB Wi-Fi module is inserted, and the computer is connected to that Wi-Fi, the XCAM1080PHX series camera becomes a Wi-Fi interface camera, and users can directly control the camera hardware using the included software ToupView/ToupLite. XCAM1080PHX series cameras can be used for on-site tool inspection, microscope observation, etc.

Product Features

C-mount camera with Sony high sensitivity CMOS sensor
HDMI / Wi-Fi can output simultaneously
HDMI output can be achieved through built-in USB interface mouse software XCamView
Wi-Fi output can be achieved by inserting USB interface Wi-Fi module, its control can be achieved by ToupView/ToupLite software provided with the camera
Can achieve 5.04M pixel (2592×1944) image capture and preview (XCAM1080PHB) or 2.0M pixel (1920×1080) (XCAM1080PHD/PHE); can achieve 1080P video stream (asf format) SD card storage

Ultra-Fine color engine ensures accurate color reproduction (when camera is connected to computer via Wi-Fi)
Provides multi-platform standard SDK for Windows/Linux/OSX
CNC housing one-piece design and processing
Can be used for stereo microscope or biological microscope image acquisition, and can also be networked into interactive teaching systems

XCAM1080PHB Specifications

Key Parameters
Product Model	XCAM1080PHB
Product Series	C-mount HDMI+Wi-Fi CMOS camera
Sensor Parameters
Sensor Model	Sony IMX178(C)
Sensor Size	1/1.8″ (6.22×4.67 mm)
Diagonal	7.8 mm
Pixel Size	2.4 μm × 2.4 μm
Resolution	5MP (2592×1944)
Shutter Type	Rolling shutter
Color Type	Color
Performance Parameters
Frame Rate	HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080
Output Interfaces	HDMI, Wi-Fi
Lens Mount	C-mount
Storage Support	SD card
Software Support	XCamView, ToupView, ToupLite
Physical Parameters
Power Supply	DC 12 V/1A
Dimensions	78 × 70 × 92 mm
Weight	0.47 kg
Environmental Parameters
Operating Temperature	-10 °C ~ +50 °C
Other Information
OS Support	Windows, Linux, macOS, Android, iOS
Certification	CE, FCC, RoHS

Packing List

A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.43 kg per box)
B XCAM1080PHX series camera ×1
C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US GS12U12-P1I (UL/CUL/BSMI/CB/FCC), EU GS12E12-P1I (TUV(GS)/CB/CE/ROHS); EMI: EN55022, EN61204-3, EN61000-3-2/-3, FCC Part 15B, BSMI CNS14338; EMS: EN61000-4-2/3/4/5/6/8/11, EN61204-3 Class A
D HDMI cable
E USB mouse
F USB wireless network adapter
G CD (drivers and application, Ø12 cm)

XCAM1080PHX Multi-Interface Camera

Body dimensions and interface layout

Package: 25.5 cm × 17.0 cm × 9.0 cm

Shipping weight: approx. 1.57 kg (with packaging)
Power: DC 12 V / 1 A (GS12 series adapter)
Interfaces: USB 3.0 / HDMI 2.0 / LAN / WiFi (AP/STA)

Touptek

E3ISPM08300KPE

2026년 1월 27일 J.H.JIN

Microscope Cameras

E3ISPM08300KPE Microscopy

Product Introduction

8.3MP next-generation 4K color CMOS camera featuring latest IMX678 sensor with 3541 mV/lx/s ultra-high sensitivity combined with 2.0 µm optimized pixel design. Excellent 45 fps at 4K output performance with 12-bit hardware ISP ensuring real-time processing. Low dark current 0.15 mV guarantees long exposure quality, making it the ideal choice for next-generation high-performance 4K microscopy imaging.

Key Features

8.3MP 4K resolution (3840×2160)
IMX678 latest sensor
Ultra-high sensitivity 3541 mV/lx/s
2.0 µm optimized pixels
1/1.8″ standard size
45 fps@4K high frame rate
60 fps@1080p smooth

12-bit hardware ISP processing
Next-generation imaging technology
Low dark current 0.15 mV
Hardware real-time optimization
8/12-bit switching
USB3.0 high-speed transmission
Latest 4K imaging solution

Product Details

Key Parameters
Model	E3ISPM08300KPE
Sensor	IMX678 (C)
Effective Pixels / Resolution	8.3M (3840×2160)
Frame Rate (Full Resolution)	45 fps@3840×2160; 60 fps@1920×1080
Shutter Type	Rolling Shutter
Color Type	Color
Imaging Performance
Pixel Size	2.0 µm × 2.0 µm
Sensor Size	7.68 mm × 4.32 mm
Diagonal	1/1.8″ (8.81 mm)
Dynamic Range	TBD
Bit Depth	8/12-bit
Sensitivity	3541 (mV/lx/s); 0.15 mV with 1/30s
Interface & Mechanical
Data Interface	USB3.0
GPIO	TBD
Lens Mount	C-mount
Dimensions	TBD
Weight	TBD
Power Supply	USB3.0 interface power (compatible with USB2.0)
Environment & Certification
Operating Temperature / Humidity	-10 °C ~ +50 °C / 30%~80%RH
Storage Temperature / Humidity	-20 °C ~ +60 °C / 10%~60%RH
Operating System	Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.)
Certification	CE, FCC

Package Contents

Standard configuration and packing details for E3ISPM series hardware ISP USB 3.0 CMOS cameras USB 3.0 Non-Cooled

Standard Packing List

Outer carton: L 52 cm × W 32 cm × H 33 cm (20 pcs, approximately 12-17 kg per carton)
Inner box: L 15 cm × W 15 cm × H 10 cm (0.58-0.60 kg per box)
One E3ISPM series camera
High-speed USB 3.0 Type-A to Type-B gold-plated cable (2.0 m)
CD (drivers and application software, Ø 12 cm)

Note: The E3ISPM series integrates a hardware ISP. For options F and G, please confirm the camera model. The ToupTek Photonics engineering team will recommend a suitable adapter based on your application.

Downloads

Camera, TELEDYNE

Application of TELEDYNE PHOTOMETRICS CAMERA

2020년 5월 15일 J.H.JIN

Application에 따른 카메라 구분

Fixed Sample Imaging Camera	Live Cell Imaging Camera
Acucam23GR2, Acqucam23S2	Prime BSI Express
Iris 9	Kinetix
Retiga R6	Iris 9

Spinning Disk Confocal Imaging Camera	Light Sheet Microscopy Imaging Camera
Prime 95B	Iris 15
Prime BSI	Prime BSI Express
Kinetix	Kinetix

Single Molecule Imaging Camera	TIRF Imaging Camera
Prime 95B	Prime 95B
Kinetix	Kinetix
Prime BSI Express	Prime BSI Express

Super Resolution Imaging Camera	Neuroscience And Electrophysiology Imaging Camera
Prime 95B	Acqucam23S2
Kinetix	Prime BSI Express
Prime BSI Express	Kinetix , Retiga ELECTRO

Physics and Biophysics Camera	High Content Imaging Camera
Kinetix	Iris 15
Prime BSI Express	Kinetix
Prime 95B	Prime BSI Express

Biochip, Genomics and Microarray Camera

Prime BSI Express

Iris 15

Retiga R6

아래 Customer Stories를 클릭 하시면 Application에 따른 다양한 카메라 사용 사례를 보실수 있습니다.

Customer Stories

The brand new Kinetix family of back-illuminated sCMOS cameras delivers a framerate and field of view unmatched by any other sCMOS camera. KINETIX CAMERA

KINETIX Scientific sCMOS Camera
400 FPS
29.4mm Diagonal FOV
1.2e- Read Noise
95% Quantum Efficiency
6.5um x 6.5um Pixel Area

Prime 95B
95% Quantum Efficiency
11 µm x 11 µm Pixel Area
82 FPS

Prime BSI
95% Quantum Efficiency
6.5um x 6.5um Pixels Area
63 FPS

Prime BSI EXPRESS
95% Quantum Efficiency
6.5um x 6.5um Pixels Area
95 FPS

Large Field of View sCMOS Camera
IRIS 15
25mm Diagonal Field of View
4.25um x 4.25um Pixel Area
30 FPS

Large Field of View sCMOS Camera
IRIS 9
17.8mm Diagonal Field of View
4.25um x 4.25um Pixel Area
30 FPS

Retiga R6 CCD (mono)
6 Megapixels
Large Field Of View
75% Peak QE

Evolve 512 Delta
High Speed Imaging
16um x 16um Pixel Area
67 FPS

**Retiga Electro : Designed for Electrophysiology**

Designed For Electrophysiology
Vibration and interface free
High Sensitivity – Cooled/Low Noise

Camera, TELEDYNE

IRIS 9 HIGH RESOLUTION IMAGING

2020년 5월 7일 J.H.JIN

Large Field of View sCMOS Camera

Iris 9 Scientific sCMOS camera는 Live cell Imaging에 최적화된 고해상도 카메라입니다.

Iris 9 Scientific camera
75% Quantum Efficiency
4.25um x 4.25um Pixe Area
9 Megapixel (2960×2960)

Applications

Customer Stories

Specification

Sensor Technology	sCMOS, Gpixel GSense 5130 Scientific CMOS sensor
Quantum Efficiency	73%
Pixel Size	4.25um X 4.25um
Supported Interfaces	PCIe ,USB3.0
Spectrum Capabilities	Visible(400-700nm), Near Infrared(700-1000nm)
Read Noise(median)	1.5 e-
Sensor Area	12.61mm X 12.61mm , 17.8mm Diagonal
Frame Rate	30fps @16bit
Iris 9	9M pixels (2960×2960)
Lens Interface	C-mount

Resolution and Pixel Size

**The small, 4.25 µm pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.**

sCMOS Sensitivity

**The low noise and high quantum efficiency across a wide range of wavelengths produces higher quality images with lower exposure times than conventional CCD cameras.**

Advanced Triggering

Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors by providing access to the sensor timing settings to allow optimization around applications that require control over the line time.

Superior Background Quality

The Iris 9 features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

Compact Form Factor

**The Iris 9 is a compact 76 x 76 x 88 mm with optimized cooling for the size, ideal for integration into new or existing configurations.**

IRIS 9 Camera Datasheet

Iris Camera Manual

DIC imaging of the cardinal vein of a zebrafish taken on the Iris 9 scientific CMOS.

Zebrafish cilia captured at 100 fps on the Iris 9 Scientific CMOS camera

Camera, TELEDYNE

IRIS 15 High Resolution Imaging

2020년 5월 7일 J.H.JIN

IRIS15 Scientific sCMOS 카메라는 넓은 FOV와 15M pixels의 고해상도 이미지를 제공 합니다.

IRIS15 Scientific camera
15Megapixel Camera (5056×2960)
4.25um x 4.25um Pixel Area
Large 25mm Diagonal Field of View

Applications

Customer Stories

Specification

Sensor Technology	sCMOS, Gpixel GSense 5130 Scientific CMOS sensor
Quantum Efficiency	73%
Pixel Size	4.25um X 4.25um
Supported Interfaces	PCIe ,USB3.0
Spectrum Capabilities	Visible(400-700nm), Near Infrared(700-1000nm)
Read Noise(median)	1.5 e-
Sensor Area	21.49mm X 12.61mm , 24.9mm Diagonal
Frame Rate	30fps @16bit
Iris 15	14M pixels (5056×5056)
Lens Interface	F-mount

Large Field of View

**The larger format 25 mm sensor of the Iris 15 is designed to increase throughput, maximize the amount of data captured and take full advantage of new, larger field of view microscopes.**

High Resolution

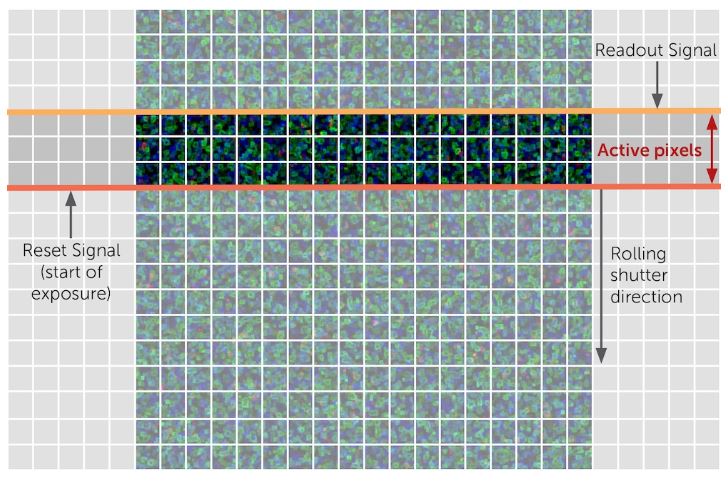

Advanced Triggering

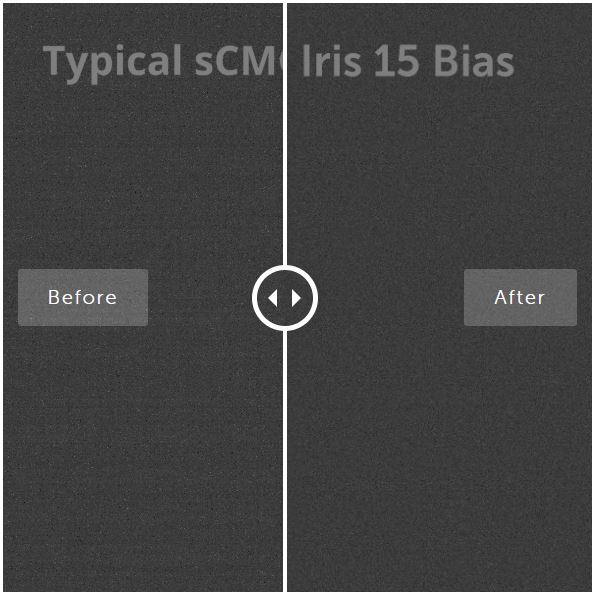

Superior Background Quality

The Iris 15 features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

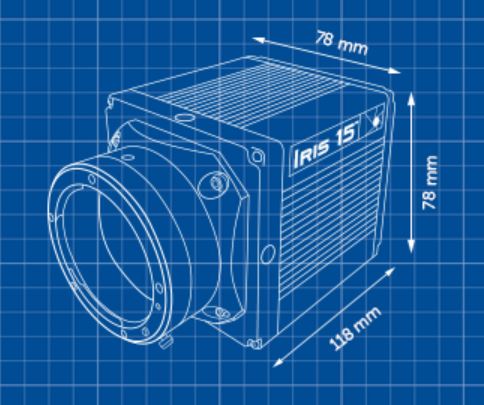

Compact Form Factor

**The Iris 15 is a compact 78 x 78 x 108 mm with optimized cooling for the size, ideal for integration into new or existing configurations.**

IRIS 15 Camera Datasheet

Iris Camera Manual

Camera, TELEDYNE

Kinetix scmos scientific camera

2020년 5월 7일 J.H.JIN

Back-illuminated Kinetix Scientific sCMOS 카메라는 가장 균형잡힌 Pixel 크기와 완벽한 95%QE효율로 가장 빠른 속도와 최대 FOV를 제공 합니다.

400 FPS
29.4mm Diagonal FOV
1.2 e- Read Noise
95% Quantum Efficiency
6.5um x 6.5um Pixel Area
3200×3200 (10.24Megapixel)

Applications

Customer Stories

Specification

Sensor Technology	sCMOS
Quantum Efficiency	95%
Pixel Size	6.5um X 6.5um
Supported Interfaces	PCIe and USB3.2
Spectrum Capabilities	UV(200-400nm), Visible(400-700nm), Near Infrared(700-1000nm)
Read Noise(median)	1.2 e-
Sensor Area	20.8mm X 20.8mm , 29.4mm Diagonal
Frame Rate	400fps @ 8bit / 90fps @12bit / 83fps @ 16bit
Kinetix	10.2M pixels (3200×3200)

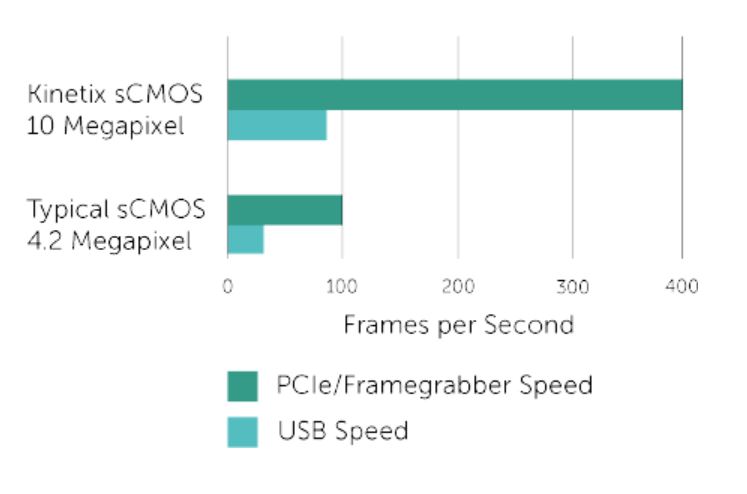

Extreme Speed

Taking advantage of an 8-bit readout mode, the Kinetix sCMOS delivers a tremendous 400 frames per second (fps), full frame with a 29.4 mm diagonal field of view. The optimized line time allows the speed to significantly outperform typical sCMOS devices, delivering over 4000 megapixels/second – an almost 10-fold improvement

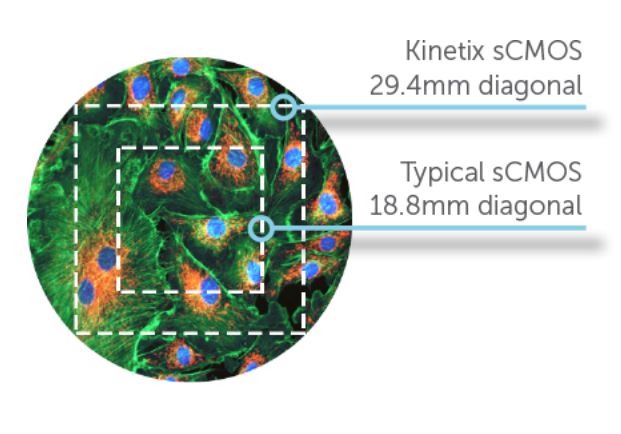

Large Field Of View

The 29.4 mm square sensor of the Kinetix is designed to increase throughput, maximize the amount of data captured in a single frame and take full advantage of new, larger field of view microscopes. At 29.4 mm diagonal, the Kinetix sensor has a 2.4x larger imaging area than typical sCMOS cameras allowing the user to significantly speed up data acquisition.

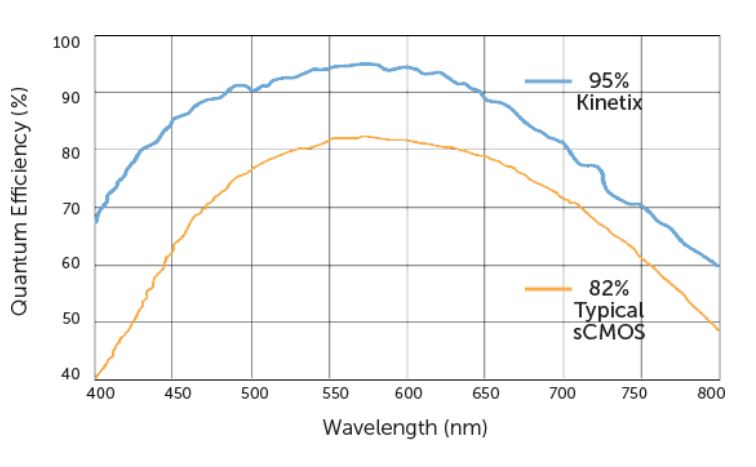

High Sensitivity

The Kinetix back-illuminated sCMOS camera achieves a near-perfect 95% quantum efficiency. By bringing the light in from the back of the sensor, photons land directly onto the light receiving surface, maximizing light collecting capability. The Kinetix combines 95% quantum efficiency with a low 1.2 e- read noise to deliver the most sensitive sCMOS camera at over 400 frames per second.

High Resolution

The Kinetix features 6.5 µm x 6.5 µm pixels, the accepted standard for most live cell applications using 40x and 60x magnification. This pixel size provides highly detailed images across the imaging plane and is most suitable for the broadest range of microscope objectives.

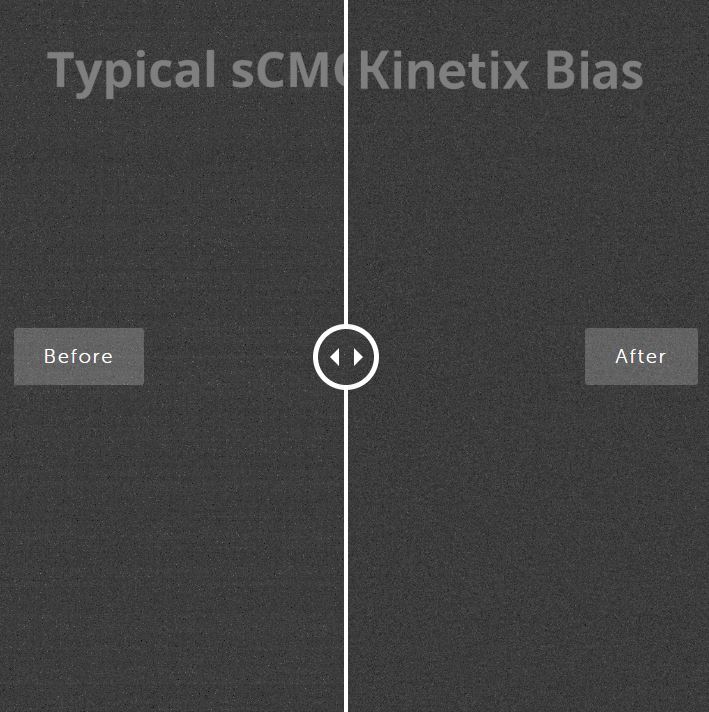

Superior Background Quality

The Kinetix features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

Kinetix sCMOS Camera Datasheet (Preliminary)

Camera, TELEDYNE

PRIME BSI express SCIENTIFIC SCMOS CAMERA

2020년 5월 7일 J.H.JIN

Prime BSI Express Scientific CMOS(sCMOS)는 최적화된 컴팩트 플랫폼으로 최적화된 Pixel 디자인, USB 3.2 Gen 2 연결성, 완벽한 95% Quantum Efficiency를 통해 고해상도 고감도 이미징의 완벽한 균형을 제공함으로써 최대한의 신호를 감지합니다.

Prime BSI EXPRESS
95% Quantum Efficiency
1.0e- Read Noise
6.5um x 6.5um Pixel Area
95 FPS over USB3.2 Gen2

Applications

Customer Stories

Specification

Sensor Technology	sCMOS
Quantum Efficiency	95%
Pixel Size	6.5um X 6.5um
Supported Interfaces	USB3.2 Gen2
Spectrum Capabilities	UV(200-400nm), Visible(400-700nm), Near Infrared(700-1000nm)
Read Noise(median)	1.0 e-
Sensor Area	13.3mm X 13.3mm
Frame Rate	43fps @ 16bit / 43fps @12bit / 95fps @11bit
Prime BSI Express	4.2M pixels (2048×2048)
