AcquCAM 23G

AcquCAM 23G

(Down load Catalog ACQUCAM 23G)

  • USB 3.0 Color Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O

AcquCAM 23G

The displays live digital images with gradual smoothness and combines exceptional resolution  with faithful color reproduction.The new sensors feature a global shutter function and able to capture a high-speed moving image without focal plane distortion. High-speed processing, low noise and low power dissipation by using column-parallel A/D conversion. equipped with trigger mode, and the external pulse can control accumulation time. The Sensor also have a pulse output function to indicate respective conditions during shutter operation and can be coordinated with peripheral circuits. High-definition images can be displayed live at a rate of high frames per second. without compression. Such imaging quality enables even the finest cellular regions to be observed clearly and distinctly without deterioration. While focusing is made stress free.

Universal camera- wide range of image acquisition  is available

Setting function of variety color images

AcquCAM23_16
With wide range of color temperature setting function, you can obtain a clear image of high sensitivity in accordance with the characteristics of samples you want to observe.

Live sharpness adjustment

You can observe and obtain sharp images by applying the sharpness function even when the live video output
You can observe and obtain sharp images by applying the sharpness function even when the live video output
[Specification]
Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats& Frame rate 1920×1200 RGB32 @ 54 fps1920x1200 Y16 @ 25 fps

1920×1200 Y800 @ 54 fps
Dynamic range 8 / 12 bit
Exposure time 1/100000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass

65 g
AcquCAM, Camera

AcquCAM Silver3

AcquCAM Silver3

(Down load Catalog_ACQUCAM SILVER3)

AcquCAM Silver3

 AcquCAM Silver3 camera has 1/1.8 CCD Color Sensor with USB 3.0 and works with resolution of 1600×1200 @ 20fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD USB 3.0 camera
  • High sensitive monochrome
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Apply Pseudo color for live fluorescence

Increased resolution by applying PSEUDO COLOR function when observing fluorescence image.
Increased resolution by applying PSEUDO COLOR function
when observing fluorescence image.

Apply Pseudo color for live fluorescence

Shooting images of fluorescence sample
Shooting images of fluorescence sample

Emphasis function on variety of images

Getting fast and clear image  with general light source

Shooting by stereo microscope and LED lighting source
Shooting by stereo microscope and
LED lighting source

[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats& Frame rate 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.05 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g
AcquCAM, Camera

AcquCAM Gold3

AcquCAM Gold3

(Down load Catalog_ACQUCAM GOLD3)

 AcquCAM Gold3 camera has 1/1.8 CCD Color Sensor with USB 3.0 and works with resolution of 1600×1200 @ 20fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD USB 3.0 camera
  • Color, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

General purpose CCD camera of in-depth image

Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.

Obtain sharp images quickly

Rapid and smooth frame of Max. 20 fps These images were shot by AcquCAM Gold3 Package.
Rapid and smooth frame of Max. 20 fps
These images were shot by AcquCAM Gold3 Package.

Getting fast and clear image with general light source

Metal specimen with shoot by stereo microscope and LED lighting source
Metal specimen with shoot by
stereo microscope and LED lighting source

[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats& Frame rate 1600×1200 RGB32 @ 20, 15, 7.5, 3.75 fps
1600×1200 Y800 @ 20, 15, 7.5, 3.75 fps
1600×1200 Y16 @ 20, 15, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass

65 g



AcquCAM, Camera, Fluorescence, Physiology

AcquCAM Pro/S3

( Down load Catalog_ACQUCAM-PRO/S3 )

AcquCAM Pro/S3

AcquCAM Pro/S3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive mono CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.

  • 1.2 Mega pixel CCDcamera
  • Monochrome, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Apply Pseudo color for live fluorescence

Apply Pseudo color for black live fluorescence

AcquCAM Pro S3_6

Emphasis function for variety images

Getting clear image with general light source

[Specification]

SpecDescription
Size1/3 inch
ResolutionH: 1280, V: 960
Pixel sizeH: 3.75 µm, V: 3.75 µm
Video formats & Frame rate1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps 1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps
Sensitivity0.015 lx
Exposure time1/10000 to 30 s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
Camera, Fluorescence

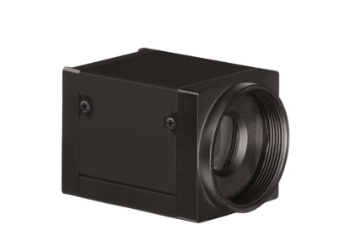

AcquCAM Pro/G3

Down load Catalog _ AcquCAM PRO/G3

AcquCAM Pro/G3

 AcquCAM Pro/G3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive color CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.

  • 1.2 Mega pixel CCD camera
  • Color, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

LIVE PSEUDO COLOR

Ex. of applied PSEUDO COLOR for black live fluorescence image

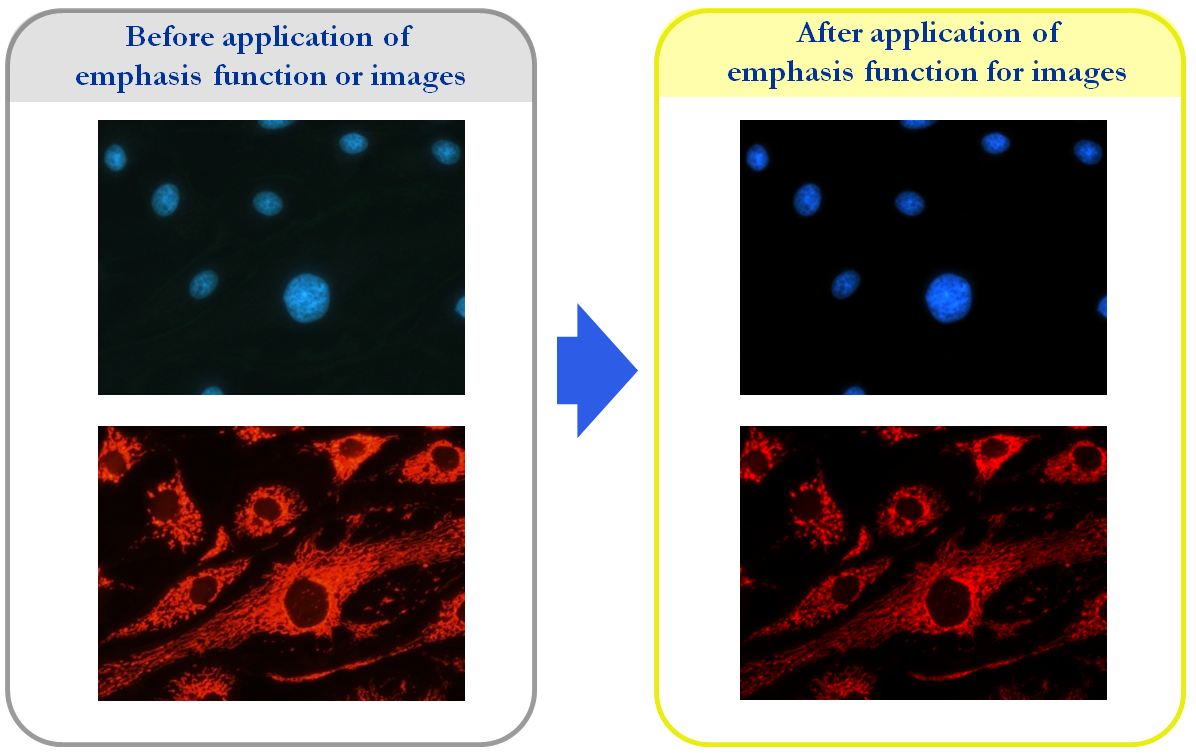

Emphasis function on variety of images

AcquCAM Pro G3_15
With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.

Acquiring high sensitive images

These images were shot by AcquCAM Silver Package.
These images were shot by AcquCAM Silver Package.

Acquiring high sensitive images from general lighting source

[Specification]

SpecDescription
Size1/3 inch
ResolutionH: 1280, V: 960
Pixel sizeH: 3.75 µm, V: 3.75 µm
Video formats & Frame rate1280×960 RGB32 @ 30, 20, 15, 7.5, 3.75 fps 1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps 1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps
Sensitivity0.05 lx
Exposure time1/10000 to 30 s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
AcquCAM, Camera, Fluorescence

AcquCAM 5U3

Down load Catalog _ AcquCAM 5U3

AcquCAM5/U3

 JNOPTIC AcquCAM5/U3 USB 3.0 camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.

Utilizing a color CMOS sensor up to 2592×1944, this camera features a variety of input, output, strobe, and trigger options via an external Hirose port. With up to 15fps and a trigger delay of less than 5 micro seconds, this USB 3.0 camera boasts a low cost and highly versatile imaging solution.

  • 5 Mega pixel CMOS camera
  • Color, Up to 15 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Wide useful camera for various field

Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images. ※ These images were shot by AcquCAM 5/U3 Package.
With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM
on variety images, you could acquire cleaner and sharper images.
※ These images were shot by AcquCAM 5/U3 Package.

Live image observation of rapid frame

Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards
Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards

[Specification]

SpecDescription
Size1/2.5 inch
ResolutionH: H: 2592, V: 1944
Pixel sizeH: 2.2 µm, V: 2.2 µm
Video formats & Frame rateMAX : 2592×1944 @ 15 fps MIN : 640×480 @ 132 fps
Sensitivity0.05 lx
Exposure time1/20000 to 1/4 s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g



AcquCAM, Camera, Fluorescence

AcquCAM Silver

AcquCAM Silver

( Down load Catalog_ACQUCAM SILVER )

AcquCAM Silver

 JNOPTIC USB CCD Camera, AcquCAM Silver serves to acquire, visualize, archive and analyze images. They are used in production automation, quality assurance, logistics and safety engineering applications and in medicine and science. Developers and system engineers prefer JNOPTIC USB CCD cameras due to ease operation for system integration.

AcquCAM Silver camera has 1/1.8 CCD Mono Sensor with USB 2.0 and works with resolution of 1600×1200 @ 12fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD camera
  • Mono, progressive scan
  • USB 2.0 interface
  • 1600×1200 pixel resolution
  • Up to 12 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

Apply Pseudo color for live fluorescence

Increased resolution by applying PSEUDO COLOR function when observing fluorescence image.
Increased resolution by applying PSEUDO COLOR function
when observing fluorescence image.

Shooting images of fluorescence sample
Shooting images of fluorescence sample

Emphasis function on variety of images

Getting fast and clear image  with general light source

AcquCAM Silver_11

[Specification]
Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats& Frame rate 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g
AcquCAM, Camera

AcquCAM Gold

Down load Catalog ACQUCAM GOLD

AcquCAM Gold

 JNOPTIC USB CCD Camera, AcquCAM Gold serves to acquire, visualize, archive and analyze images. They are used in production automation, quality assurance, logistics and safety engineering applications and in medicine and science. Developers and system engineers prefer JNOPTIC USB CCD cameras due to ease operation for system integration.

AcquCAM Gold camera has 1/1.8 CCD Color Sensor with USB 2.0 and works with resolution of 1600×1200 @ 12fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD camera
  • Color, progressive scan
  • USB 2.0 interface
  • 1600×1200 pixel resolution
  • Up to 12 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

General purpose CCD camera of in-depth image

Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.

Obtain sharp images quickly

AcquCAM Gold_13
Composite images of fluorescence sample image
These images were shot by AcquCAM Gold Package.

Getting fast and clear image even with general light source

Metal specimen with shoot by stereo microscope and LED lighting source
Metal specimen with shoot by stereo microscope and LED lighting source

[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats & Frame rate 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g
AcquCAM, Camera

AcquCAM Pro/U

AcquCAM Pro/U

Down load Catalog _ AcquCAM Pro/UAcquCAM Pro/U

AcquCAM Pro/U offers perfect resolution of the images as a professional microscope digital camera. This is CCD that provides more sophisticated image than CMOS, and offers 1.3 mega pixel high-definition images. With convenience of use and fast transfer rate of 400Mbps, high quality images can be observed at rate of 15 frames per second.

  • 1.3 Mega pixel CCD camera
  • Color, Progressive scan
  • Lower fixed Pattern Noise
  • Auto white balance support
  • RGB Bayer video output
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

Minimum noise of  wide use CCD Camera

Black balance and Auto Level of ARM on variety images

AcquCAM Pro U_17

Minimum noise even long-time exposure

AcquCAM Pro U_16

[Specification]

Spec Description
Size 1/2 inch
Resolution H: 1280, V: 960
Pixel size H: 4.65 µm, V: 4.65 µm
Video formats & Frame rate 1280×960 UYVY @ 7.5, 3.75 fps
1280×960 BY8 @ 15, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g



AcquCAM, Camera

AcquCAM 3

Down load catalog – 준비중

3 Mega pixel CMOS camera Color, Progressive scan High speed USB 2.0 Interface (480Mbits/sec) 10 fps at 2048×1536 resolution

AcquCAM3 is designed for acquiring the microscope image. 3 mega pixel image for microscope image provides an optimized solution. By USB 2.0 interface, with only one cable connection, the 3 mega pixel image can be observed in 10 frames per second and microscope image can be observed, as up to 35.5 frames of high-speed.

  • 3 Mega pixel CMOS camera
  • Color, Progressive scan
  • High speed USB 2.0 Interface (480Mbits/sec)
  • 10 fps at 2048×1536 resolution / up to 35.5 fps at 1024×768 resolution
  • Auto white balance support
  • RGB Bayer video output
  • All camera parameters adjustable via the computer
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

Wide use of high speed CMOS camera

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM
on variety images, you could acquire cleaner and sharper images.

그림17

High sensitive observation of 3 mega pixel

그림15

[Specification]
Spec Description
Size 1/2 inch
Resolution H: 2048, V: 1536
Pixel size H: 3.2 µm, V: 3.2 µm
Video formats& Frame rate 2048×1536 RGB32 @ 10, 7.5, 5, 3.75 fps
1024×768 RGB32 @ 35.5, 30, 15, 10 fps
2048×1536 Y800 @ 10, 7.5, 5, 3.75 fps
1024×768 Y800 @ 35.5, 30, 15, 10 fps
Sensitivity 5 lx
Exposure time 1/10,000 to 4 sec
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 29 mm
Mass 140 g
