Fluorescence, Fluorochrome

HEX,SE

Spectrum Chart

HEX,SE Spectrum
Excitation (㎚) Emission (㎚)
533 559



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49014 530/30
(515~545)		 550 (LP) 575/40
(555~595)		 Medium Excitation band,
Bandpass Emission
49023 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49907 532/10
(527~537)		 532 (LP) 575/50
(550~600)		 For use with laser between 529~535㎚

Narrow Excitation band,
Bandpass Emission















Fluorescence, Fluorochrome

FusionRed

Spectrum Chart

FusionRed Spectrum
Excitation (㎚) Emission (㎚)
576 603



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R1(B) 560/40
(540~580)		 600 (LP) 635/60
(605~665)		 Wide Excitation band,
Bandpass Emission
49008 560/40
(540~580)		 600 (LP) 630/75
(592.5~667.5)		 Wide Excitation band,
Bandpass Emission
49017 560/40
(540~580)		 590 (LP) 590 (LP) Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49910 561/10
(556~566)		 514 (LP) 630/70
(595~665)		 For use with laser between 557~563㎚

Narrow Excitation band,
Bandpass Emission
49911 594/10
(589~599)		 594 (LP) 645/75
(607.5~682.5)		 For use with laser 594㎚

Narrow Excitation band,
Bandpass Emission









Fluorescence, Fluorochrome

FM 4-64

Spectrum Chart

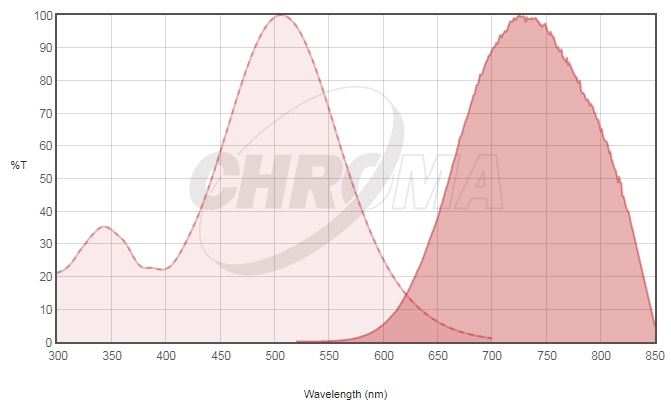

FM™ 4-64 Spectrum
EX(㎚) EM(㎚)
515 740



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
19006 560/40
(540~580)		 600 (LP) 610 (LP) Medium Excitation band,
Longpass Emission
19010 480/30
(465~495)		 505 (LP) 600 (LP) Medium Excitation band,
Longpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.





Fluorescence, Fluorochrome

FM 1-43

Spectrum Chart

FM™ 1-43 Spectrum
EX(㎚) EM(㎚)
479 597



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
19010 480/30
(465~495)		 505 (LP) 600 (LP) Medium Excitation band,
Longpass Emission
39009 480/30
(465~495)		 505 (LP) 620/60
(590~650)		 Medium Excitation band,
Bandpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.







Fluorescence, Fluorochrome

FluoroGold

Spectrum Chart





EX(㎚) EM(㎚)
– –



Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
19012 375/28
(361~389)		 415 (LP) 515 (LP) Medium Excitation band,
Longpass Emission
49025 350/50
(361~389)		 400 (LP) 425 (LP) Wide Excitation band,
Longpass Emission



  • 레이저 Lighting source -> 문의 주시기 바랍니다.







Chroma, Filter, Fluorescence

49025

Chroma Filter 49025

49025 Spectrum

Chroma_49025
Chroma_49025
FiltersType
AT350/50x V2EX
T400LPBS
AT425lpEM

– Filter set for DAPI/FluoroGold Longpass

  • Main Fluorochromes : FluoroGold
Excitation (㎚)Emission (㎚)
––

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

  • 본 자료는 직접 문의하여 주시기 바랍니다.

49025 필터에 적합한 형광색소

  • FluoroGold

49025 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

Fluorescence, Fluorochrome

FlAsH-CCPFCC

Spectrum Chart

FlAsH-CCPFCC Spectrum

Excitation (㎚) Emission (㎚)
511 530



Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39003 495/20
(485~505)		 515 (LP) 535/30
(520~550)		 Narrow Excitation band,
Bandpass Emission
49003 500/20
(490~510)		 515 (LP) 540/30
(525~555)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49905 514/10
(509~519)		 514 (LP) 545/40
(525~565)		 For use with laser between 511~517㎚

Narrow Excitation band,
Bandpass Emission
