Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 405 | 512 |
Recommended Filter Set
-
일반 형광 Lighting source 사용시 -> 문의 주시기 바랍니다.
-
레이저 Lighting source 사용시 -> 문의 주시기 바랍니다.
카테고리 보관물: Chroma
Brilliant Violet 480
Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 437 | 478 |
Recommended Filter set
-
일반 형광 Lighting source
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49001 | 436/20 (426~446) |
455 (LP) | 480/40 (460~500) |
Narrow Excitation band, Bandpass Emission |
| 49032 | 436/20 (426~446) |
455 (LP) | 480/40 (460~500) |
Narrow Excitation band, Bandpass Emission |
| 49302 | 436/20 (426~446) |
455 (LP) | 480/40 (460~500 |
Narrow Excitation band, Bandpass Emission |
-
레이저 Lighting source
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49902 | 436/20 (426~446) |
442 (LP) | 480/40 (460~500) |
For use with laser between 430-445㎚
Narrow Excitation band, |
| 49903 | 436/20 (426~4460) |
442 (LP) | 500/40 (480~520) |
For use with laser between 430-445㎚
Narrow Excitation band, |
Brilliant Violet 421
Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 408 | 422 |
Recommended Filter
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49027 | 395/25 (382.5~407.5) |
412 (LP) | 431/28 (417~445) |
Narrow Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49901 | 405/20 (395~415) |
405 (LP) | 460/50 (435~485) |
For use with laser between 400~410㎚
Narrow Excitation band, |
BODIPY FL/pH7.2

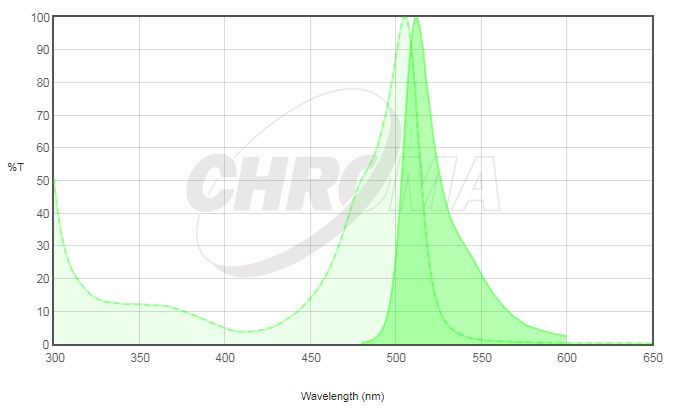

Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 505 | 512 |
Recommended Filter Set
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| JNO-B(B) | 480/30 (465~495) |
505 (LP) | 535/40 (515~555) |
Medium Excitation band, Bandpass Emission |
| 49002 | 470/40 (450~490) |
495 (LP) | 525/50 (500~550) |
Wide Excitation band, Bandpass Emission |
| 49011 | 480/40 (460~500) |
510 (LP) | 535/50 (510~560) |
Wide Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49904 | 488/10 (483~493) |
488 (LP) | 525/50 (500~550) |
For use with laser between 485~491㎚
Narrow Excitation band, |
Biosearch Blue
Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 352 | 447 |
Recommended Filter set
-
일반 형광 Lighting source
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| JNO-U(B) | 375/28 (361-389) |
415 (LP) | 460/50 (435-485) |
Narrow Excitation band, Bandpass Emission |
| 49000 | 350/50 (325-375) |
400 (LP) | 460/50 (435-485) |
Wide Excitation band, Bandpass Emission |
| 49028 | 395/25 (382.5-407.5) |
425 (LP) | 460/50 (435-485) |
For 395㎚ light sources
Narrow Excitation band, |
-
레이저 Lighting source -> 문의 주시기 바랍니다.
BCECF/pH 9.0
Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 503 | 528 |
Recommended Filter Set
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 79005 | 436/20 (426~446)495/10 (490~500) |
510 (LP) | 540/40 (520~560) |
Very Narrow Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시 -> 문의 주시기 바랍니다.
BCECF/pH 5.2
Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 482 | 520 |
Recommended Filter Set
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 79005 | 436/20 (426~446)495/10 (490~500) |
510 (LP) | 540/40 (520~560) |
Very Narrow Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시 -> 문의 주시기 바랍니다.
49303
Chroma Filter 49303
49303 Spectrum
| Filters | Type |
| ET495/25x | EX |
| T515lpxr | BS |
| ET537/29m | EM |
– Filter set for Green#2/FISH
- Main Fluorochromes : BB515
| Excitation (㎚) | Emission (㎚) |
| 490 | 525 |
주요 형광 색소(Fluorochromes)와 스펙트럼 비교
* BB515 VS 49303
49303 Spec
- Typical Application(s) : Widefield Microscopy
- Coating : Sputter/Hard Coated
- Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
- Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)
*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.
BB515
Spectrum Chart
BB515 Spectrum
| Excitation (㎚) | Emission (㎚) |
| 490 | 514 |
Recommended Filter
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49303 | 495/25 (482.5~507.5) |
515 (LP) | 537/29 (522.5~551.5) |
Wide Excitation band, Bandpass Emission |
| 49308 | 485/25 (472.5~497.5) |
505 (LP) | 525/30 (510~540) |
Narrow Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시 -> 문의 주시기 바랍니다.
49308
JNOPTIC Filter 49308
Download Catalog_49308
49308 Spectrum
| Filters | Type |
| ET485/25x | EX |
| T505lpxr | BS |
| ET525/30m | EM |
– Filter set for Green#2/FISH
- Main Fluorochromes : BB515
| Excitation (㎚) | Emission (㎚) |
| 490 | 525 |
주요 형광 색소(Fluorochromes)와 스펙트럼 비교
* BB515 VS 49308
49308 Spec
- Typical Application(s) : Widefield Microscopy
- Coating : Sputter/Hard Coated
- Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
- Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)
*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.
