Soft Imaging System의 디지털 카메라는 디지털 이미지 획득의 기대에 부응하여 꾸준히 대응하고 있습니다.
ColorView IIIu는 광학 현미경을 위한 칼라 카메라 시리즈의 최신작 입니다.
ColorView IIIu는 생명과학(Life science) 및 Biomedicine의 모든 응용 분야 뿐만 아니라 재료 과학 (Materials sciences) 분야에 동등하게 적용할 수 있습니다.
Extraordinary features…
are what make the 5 MegaPixel color camera ColorViewIIIu so distinctive. Alongside its extremely high resolution camera has a high dynamic range, high frame rates and color binning. The color fidelity and superior contrast of acquisitions made using the ColorViewIIIuare what users find so compelling. At the same time, the camera has an excellent signal-to-noise ratio. The standard C-mount adaptor ensures that installation is easy on all common microscopes. Data transmission to the PC is via FireWire™ interface (IEEE 1394).
Perfect images…
easy to use and full software operation due to integration of all camera functions within theanalySIS® image-analytical software. “Digital Live Processing” is integrated into analySIS®and offers numerous real-time functions which ensure that the camera’s entire dynamic range is exploited. Furthermore, analySIS® has IntX (Intelligent eXposure) – an integrated solution for easy-to-use and automatic exposure control. This makes acquiring top-quality images at the mere click of a button easy for all users. No extensive technical background is required.
And after acquisition…
the ColorViewIIIu’s full integration into the analySIS® software provides all the capabilities and advantages of advanced image processing. There’s an extensive image-labeling-and-filtering library, professional particle analysis, well-structured image and data archiving as well as report generation for professional documentation.
Slides by Volker Neureuther, Ingolstadt, Germany
Depending on options, analySIS® expansion level and Real-time automatic contrast control
Soft Imaging System의 디지털 카메라는 디지털 이미지 획득의 기대에 부응하여 꾸준히 대응하고 있습니다.
ColorView III는 광학 현미경을 위한 칼라 카메라 시리즈의 최신작 입니다.
ColorView III는 생명과학(Life science) 및 Biomedicine의 모든 응용 분야 뿐만 아니라 재료 과학 (Materials sciences) 분야에 동등하게 적용할 수 있습니다.
Extraordinary features…
are what make the 5 MegaPixel color camera ColorViewIII so distinctive. Alongside its extremely high resolution, the Peltier-cooled camera has a high dynamic range, high frame rates, partial read-out and color binning. The color fidelity and superior contrast of acquisitions made using the ColorViewIIIare what users find so compelling. At the same time, the camera has an excellent signal-to-noise ratio. The standard C-mount adaptor ensures that installation is easy on all common microscopes. Data transmission to the PC is via FireWire™ interface (IEEE 1394).
Perfect images…
easy to use and full software operation due to integration of all camera functions within the analySIS® image-analytical software. “Digital Live Processing” is integrated into analySIS® and offers numerous real-time functions which ensure that the camera’s entire dynamic range is exploited. Furthermore, analySIS® has IntX (Intelligent eXposure) – an integrated solution for easy-to-use and automatic exposure control. This makes acquiring top-quality images at the mere click of a button easy for all users. No extensive technical background is required.
And after acquisition…
the ColorViewIII’s full integration into the analySIS®software provides all the capabilities and advantages of advanced image processing. There’s an extensive image-labeling-and-filtering library, professional particle analysis, well-structured image and data archiving as well as report generation for professional documentation.
Slides by Volker Neureuther, Ingolstadt, Germany
Depending on options, analySIS® expansion level and
CC-12는 어떠한 광학 현미경 어플리케이션에도 대응하는 고해상도 12비트 칼라 CCD 카메라 입니다.
FireWire 기술 (IEEE1394)에 의한 Peltier 냉각 및 전력을 공급받으며 어떠한 저조도 환경에서도 최적의 신호대 잡음비를 제공해 줍니다.
CC-12는 “analySIS Five” Image Analyzer Software에 완전히 통합됩니다.
Digital solutions – Developed to be exceptional
The series of light microscope cameras by Soft Imaging System has been designed to meet the highest digital-imaging acquisition demands for all areas of the microscopy field.
The CC-12 is the successor to the ColorView 12. This 12-bit, Peltier-cooled and FireWire™(IEEE 1394) equipped color digital camera is the ideal introduction to digital image acquisition in the field of light microscopy.
All functions of the camera can be completely controlled and operated via the analySIS®image-analytical software. No matter what current acquisition conditions are, real-time functions guarantee that the entire dynamic range is taken advantage of. This ensures the user optimal contrast all the time.
Following acquisition, CC-12’s total integration into analySIS® provides the full range of options and advantages of the latest in image processing and analysis, from image labeling to archiving, report generation and e-mailing all the way on to photo-realistic printouts – and there’s no more need for the darkroom.
CC-12 mounted onto Olympus BX60F daphnia longispina (long-spined water flea) with eggs
CC-12 mounted onto Olympus BX60F micrasterias rotata (a desmid – single-celled green algae)
High Resolution The CC-12 camera has a resolution of 1300 x 1030 pixels. This is three times greater than that of a regular video camera.
A camera that’s low-noise and cooled Highly efficient readout technology (Correlated Double Sampling) coupled with Peltier-cooling of the CCD chip results in images of superior signal-to-noise ratio.
Variable exposure times Highly sensitive CCD elements are even capable of detecting signals that are extremely weak. The electronic shutter offers variable exposure times ranging from 100 µs to 160 seconds.
High frame rate The high speed ADC (Analog-Digital Converter) working at a clock rate of 20 MHz in full 12-bit dynamic range is able to perform double sampling even at a readout rate of 20 MHz. Various frame rates are supported by this camera. For example, the camera can be set to acquire at a high frame rate of more than 22 fps at TV resolution using 2x binning. View your zoomed-in sample, locate the area of interest and focus – all conveniently onscreen. No longer are you forced to trade off speed for quality. For acquisition the system switches automatically into the high-resolution mode. This avoids bleaching of your fluorescence specimen and offers optimal performance when setting parameters.
FireWire™ Interface (IEEE 1394) FireWire™ technology guarantees that the CC-12 installation is easy on any PC or laptop equipped with a FireWire™ port. The days when you were limited to a frame grabber and just a single camera are history. FireWire™ technology enables you to use multiple cameras on the same PC.
Peltier-Cooling Image noise is generally the result of one of two things: either the CCD chip is not being cooled to a low enough temperature (known as ”dark current”), or due to mechanical vibrations. For the CC-12, thermal noise and instability is not a problem because the CCD chip is Peltier-cooled and stabilized at 10°C, resulting in a very high signal-to-noise ratio. Noise is further suppressed by the application of a highly efficient digital readout technique known as Correlated Double Sampling.
Installation is easy The CC-12 can be mounted onto all light microscopes with a C-mount adaptor. Plus, you only need one cable for getting data and power to the PC’s FireWire™ port. No more clutter and no ’octopus’ of cables getting in your way.
Real-time functions CC-12 is fast. Put this in combination with the high speed of today’s CPU’s, and you’ve got an attractively broad range of real-time functions within analySIS® available to you. These include automatic contrast control, automatic white balance and histogram display.
Analyzing images A vast library of text, graphic and editing functions is available for labeling images. Special filters and professional particle analysis assist in more extensive investigation of images. All this makes it simple to obtain reliable and reproducible results quickly.
No more darkroom Photo-quality printouts can be obtained following acquisition without any need for a darkroom nor its developing chemicals. And these photo-quality printouts are in your hands in minutes.
Archiving analySIS® offers you a powerful, fully network-able, image-archiving system that handles all the images and data generated during the process of image acquisition and documentation. Images can be stored along with text, sheets and other graphics as records for complete documentation of tasks and processing steps. Input, display and query masks can be defined independently.
Automatic report generation Now you can produce multi-page reports quickly and efficiently. Select multiple images in the image database and insert them all into the report via a single command. In addition to the images themselves, you can have information from any database field automatically included in reports. Automatic scaling, detail zooms, and more – all available to optimize the way you work with images. All documents generated using the analySIS® software can be inserted into reports. Use the report generator to print out images, related measurement sheets, and diagrams – all on the same page. This report generator provides you with the utmost flexibility for page layout and design. You set up your own templates exactly the way you want them to be. Templates need to be created just once. Templates are what your reports are based on and ensure that the appearance of your documents is uniform. Use the RTF Export function to export your reports to MS Word for continued editing.
CC-12 and mia Automatic pattern recognition means you can use mia to montage multiple component imagesacquired with the CC-12 into a single, high-resolution image. This is tremendously useful, eg, when you wish to display a sample in its entirety at high resolution but the microscope is only capable of showing a portion of the sample at such high resolution. All you need to do is define image size and resolution. The rest is taken care of automatically.
Software control of all camera functions
Manufacturer programmable RISC CPU + FPGA via firmware download
Multi-threading code support on multi-CPU PC
Depending on options, analySIS® expansion level and
Real-time automatic contrast control
Real-time automatic white balance
Black balance
Sharpness monitor
Specifications
Image Device
2/3 inch Color CCD Sensor (Effective area 8.9 x 6.7 mm array)
이 제품은 극도로 높은 감도, 저 노이즈, 고해상도의 정량화할 수 있는 이미지를 요구하는 응용분야에 이상적입니다.
F-View II 는 FireWire 기술 (IEEE1394)에 의한 Peltier 냉각 및 전력을 공급받으며 FISH 혹은 Single band-pass 필터를 사용하는 다중 노출 형광 응용분야를 위해 특별히 설계되었습니다.
F-View II 는 “analySIS Five” Image Analyzer Software에 완전히 통합됩니다.
Digital solutions – Developed to be exceptional!
Soft Imaging System’s digital cameras are designed to meet the steadily rising demands on digital image acquisition for all areas of microscopy. And so is the newly developed 12-bit, cooled CCD color camera F-ViewII, our latest 12-bit, Peltier-cooled, FireWire™-driven solution for fluorescence microscopy.
The search mode enables you to rapidly locate and conveniently focus in on the area of your sample of interest. This prevents any unnecessary bleaching of the sample.
The camera will automatically switch over to the high-resolution mode for acquisition. F-ViewII can also be easily operated using a laptop via the FireWire™ port.
All camera functions are fully controlled by the analySIS® image-processing software. Real-time functions enable the use of the entire dynamic range under all conditions and guarantee the best contrast.
F-ViewII’s integration into analySIS® provides all the capabilities and advantages of state-of-the-art digital image processing and analysis, ranging from image labeling, archiving, report generation and e-mailing, as well as photo-realistic printouts without the darkroom.
High Resolution
The CCD chip of the F-ViewII has 1376 x 1032 pixel resolution. The 12-bit dynamic range means that even acquisition of images with very bright and faint regions is dynamically optimal.

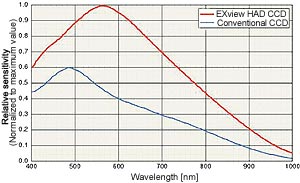

High sensitivity
CCD elements are so sensitive that they have no trouble detecting even the weakest of signals. The electronic shutter offers variable exposure times ranging from 100 µs to 160 seconds.
High frame rate
The high speed ADC (Analog-Digital Converter) working at a clock rate of 20 MHz in full 12-bit dynamic range is able to perform double sampling even at a readout rate of 20 MHz. Various frame rates are supported by this camera. For example, the camera can be set to acquire at a high frame rate of more than 22 fps at TV resolution using 2x binning. View your zoomed-in sample, locate the area of interest and focus – all conveniently onscreen. No longer are you forced to trade off speed for quality. For acquisition the system switches automatically into the high-resolution mode. This avoids bleaching of your fluorescence specimen and offers optimal performance when setting parameters.
FireWire™ Interface (IEEE 1394)
FireWire™ technology guarantees that the F-ViewII installation is easy on any PC or laptop equipped with a FireWire™ port. The days when you were limited to a frame grabber and just a single camera are history. FireWire™ technology enables you to use multiple cameras on the same PC.
Peltier-Cooling
Image noise is generally the result of the CCD chip not being cooled to a low enough temperature (“dark current”). For the F-ViewII, thermal noise is not a problem because the CCD chip is Peltier-cooled and stabilized at 10°C. Noise is further suppressed by the application of a highly efficient digital readout technique known as Correlated Double Sampling (CDS).
Compact design
With its elegantly compact, newly designed housing, the F-ViewII can be mounted onto all light microscopes with a C-mount adaptor. No other interfaces or adaptors are necessary. Plus, you only need one cable for getting data and power to the PC’s FireWire™ port. No more clutter and no “octopus” of cables getting in your way.

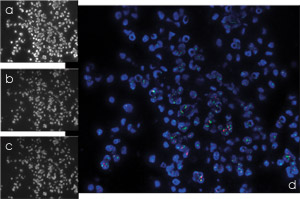

DAPI, PE, APC, PerCP & FITC image acquisitions of stem cells: combined acquisitions done via themFipanalySIS® add-in
source: Dr. Hans Wessels
University Clinic for Children, Tübingen, Germany
Real-time functions F-ViewII is fast. Put this in combination with the high speed of today’s CPU’s, and you’ve got an attractively broad range of real-time functions within analySIS®available to you. These include automatic contrast control, sharpness monitoring and histogram display.
Analyzing images
A vast library of text, graphic and editing functions is available for labeling images. Special filters and professional particle analysis assist in more extensive investigation of images. All this makes it simple to obtain reliable and reproducible results quickly.
No more darkroom
Photo-quality printouts can be obtained following acquisition without any need for a darkroom nor its developing chemicals. And these photo-quality printouts are in your hands in minutes.
a) Her2 gene (Spectrum Orange)
b) DNA (DAPI)
c) Chromosome (Spectrum Green)
d) Combination with mFip
Specimen: Norbert Wey
University of Zürich
Department of Pathology
Switzerland
Archiving analySIS® offers you a powerful, fully networkable, image-archiving system that handles all the images and data generated during the process of image acquisition and documentation. Images can be stored along with text, sheets and other graphics as records for complete documentation of tasks and processing steps. Input, display and query masks can be defined independently.
Automatic report generation
Now you can produce multi-page reports quickly and efficiently. Select multiple images in the image database and insert them all into the report via a single command. In addition to the images themselves, you can have information from any database field automatically included in reports. Automatic scaling, detail zooms, and more – all available to optimize the way you work with images.
All documents generated using the analySIS® software can be inserted into reports. Use the report generator to print out images, related measurement sheets, and diagrams – all on the same page. This report generator provides you with the utmost flexibility for page layout and design. You set up your own templates exactly the way you want them to be. Templates need to be created just once. Templates are what your reports are based on and ensure that the appearance of your documents is uniform. Use the RTF Export function to export your reports to MS Word for continued editing.
Software control of all camera functions
Manufacturer programmable RISC CPU + FPGA via firmware download
Multi-threading code support on multi-CPU PC
Depending on options, analySIS® expansion level and
Real-time automatic contrast control
