Chroma, Filter, Fluorescence

89400

JNOPTIC Filter 89400

ET – DAPI/FITC/TRITC/Cy5 Quad with Single Band Exciters

A version of the 89000 Quad set with a quad band emisison filter and four individual excitation filters for use in an external filter housing such as a filter wheel, similar to Chroma’s original Pinkel filter set. Allows for selective excitation of individual fluors in sample containing multiple fluors. Appropriate for live viewing or image acquisition with monochrome or color cameras.

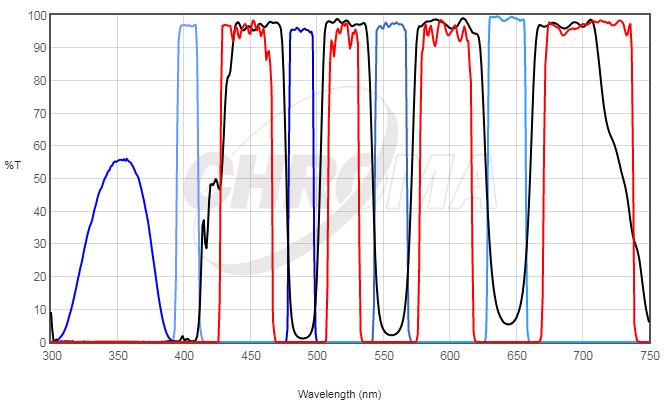

89400 Spectrum

Chroma_89400
Chroma_89400
FiltersType
AT350/50xEX
ET402/15xEX
ET490/20xEX
ET555/25xEX
ET645/30xEX
89100bsBS
89101mEM

89400 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: These require the use of filter wheels or sliders, or image-splitting devices to hold multiple individual filters.
