Chroma Filter 49003

49003 Spectrum

Filters	Type
ET500/20x	EX
T515LP	BS
ET535/30m	EM

– Filter set for EYFP

• Main Fluorochromes : YFP

Excitation (㎚)	Emission (㎚)
514	527

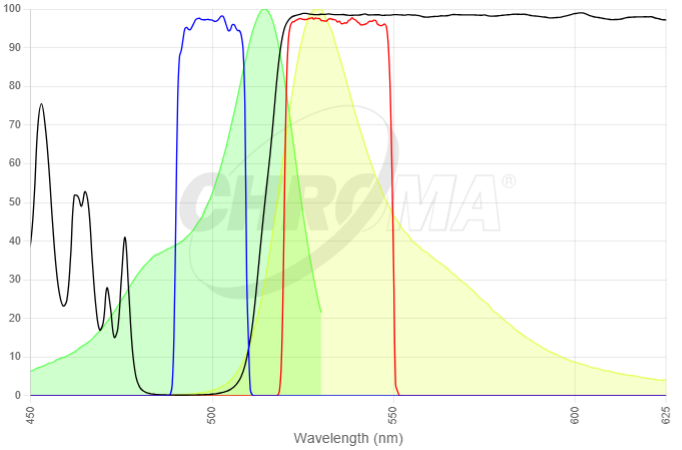

Spectrum Comparison Fluor and 49003

Best with these fluorochromes

• Alexa Fluor 514™
• Atto 488
• Calcein
• Calcium Green™-1
• Citrine
• EYFP/pH 7
• FlAsH-CCPFCC
• Fluo-3
• mCitrine
• Oregon Green™ 488
• Oregon Green™ 514
• Rhodamine 123
• Topaz
• ZsYellow

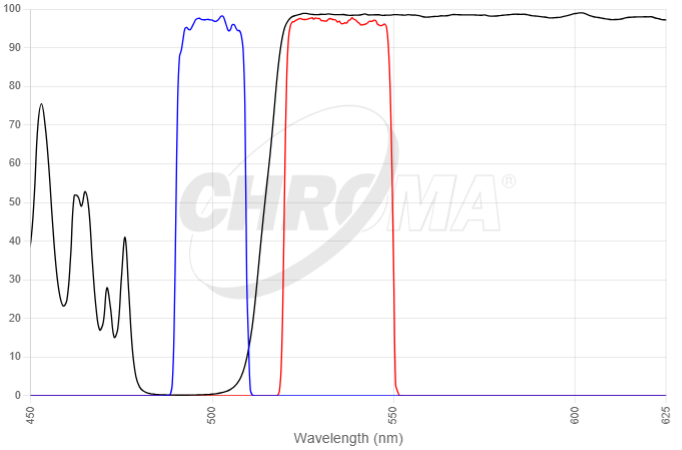

49003 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm or 3.5mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm or 25.5×36, 1mm thick, to fit standard microscope manufacturer filter cubes
