Chroma, Filter, Fluorescence, Fluorochrome

FISH

Fluorescence In Situ Hybridization
– 형광동소보합법 –

Inadequat Contrast Image for FISH
Inadequat Contrast Image
Good Contrast Image for FISH
Good Contrast Image
Inadequat Contrast Spectrum for FISH Filter
Inadequat Contrast Spectrum Chart
Good Contrast Spectrum Chart for FISH Filter
Good Contrast Spectrum Chart

Many factors influence the quality of FISH

1. Processing & storage2. Specimen3. Probes
4. Microscope5. Filters6. Light source
Many factors influence the quality of FISH
Inadequat Contrast Image for FISHGood Contrast Image for FISH
필터 선정시 고려 할 사항설 명
ContrastSignal / Noise ratio =
MORE CONTRAST
BrightnessSave time, increase throughput
and reduce eye strain with brighter images
Color SeparationDistinguish between colors
more easily and exclude unwanted colors
RegistrationEach filter set produces images that are aligned with images from other filter sets
형광 필터 선정시 고려할 포인트

Chroma, Filter, Fluorescence, JNOPTIC

Mycobacterium tuberculosis

결핵 검진을 위한 형광현미경 검경법

Auramine O나 Auramine-rhodamine을 이용한 염색법으로 20x 또는 40x 대물렌즈로 관찰 한다 (접안렌즈 기준 200배 또는 400배). 이러한 형광염색은 Ziehl-Neelsen (ZN) 염색에 비해 민감도가 10% 높아서 관찰량이 많은 사용자에게 권고하는 것이 좋다.

JNO-19008

Ex: 425~475 ㎚, Dm: 485 ㎚, Em: 495 ㎚~
Auramine Longpass

Chroma, Filter

Industrial Filters

UV FILTER ( 자외선 투과 필터 )

270 ㎚ 투과필터 ( 263 ~ 277 ㎚ ) 350 ㎚ 투과필터( 325 ~ 375 ㎚ )

NIR FILTER ( 근적외선 필터 )

780 ㎚ 이상 투과필터 ( 780 ㎚ ~ ) 밴드투과 필터 ( 771 ~ 851 ㎚ )

Near Infrared Camera
근적외선 관찰 카메라

AcquCAM 23GR2

칼라 카메라

– 근적외선 대응 – 		Color Camera

UV 자극을 이용한 형광 이미지 _ DAPI
AcquCAM 23S2

흑백 카메라

– 근적외선 대응 –		 Monochrome Camera ( IR-DIC Imagea )

적외선을 이용한 미분 간섭 관찰 이미지

Chroma, Filter, Fluorescence

79004

Chroma Filter 79004

ET – Fura 2/GFP

79004 Spectrum

FiltersType
ET340xEX
ET380xEX
ET470/40xEX
T495lpxruBS
ET535/70mEM

79004 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Chroma, Filter, Fluorescence

79003

Chroma Filter 79003

ET – Fura 2/TRITC

79003 Spectrum

Chroma_79003
Chroma_79003
FiltersType
ET340xEX
ET380xEX
ET555/25xEX
79003bsBS
79003mEM

79003 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Chroma, Filter, Fluorescence

79001

Chroma Filter 79001

ET – Fura 2

79001 Spectrum

Chroma_89403
Chroma_89403
FiltersType
ET340xEX
ET380xEX
T400lpBS
ET510/80mEM

79001 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Chroma, Filter, Fluorescence

59217

Chroma Filter 59217

ET – ECFP/EYFP with single band exciters

59217 Spectrum

Chroma_59217
Chroma_59217
FiltersType
ET430/24xEX
ET500/20xEX
69008bs BS
59017mEM

59217 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Chroma, Filter, Fluorescence

59222

Chroma Filter 59222

ET – EGFP/mCherry (or FITC/TxRed) with single band exciters

59222 Spectrum

Chroma_59222
Chroma_59222
FiltersType
ET470/40xEX
ET572/35xEX
59022bs BS
59022mEM

59222 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Chroma, Filter, Fluorescence

59017

Chroma Filter 59017

ET – ECFP/EYFP

59017 Spectrum

Chroma_59017
Chroma_59017
FiltersType
59017xEX
69008bsBS
59017mEM

59017 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Chroma, Filter, Fluorescence

59022

Chroma Filter 59022

ET – EGFP/mCherry (or FITC/TxRed)

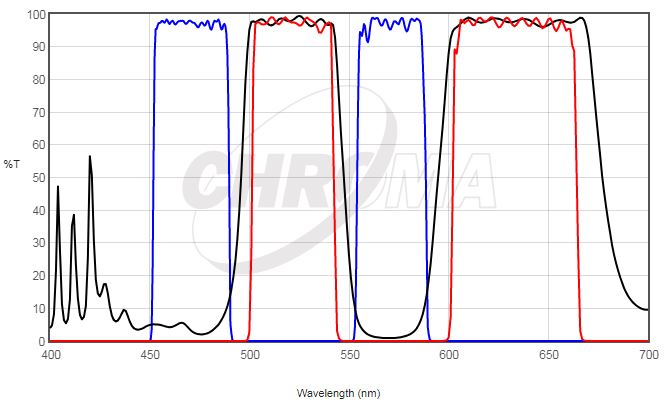

59022 Spectrum

Chroma_59022
Chroma_59022
FiltersType
59022xEX
59022bsBS
59022mEM

59022 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.
