Vibratome

VF-900-0Z Vibratome

CompresstomeⓇ VF-900-0Z 의 특징 :

  • 큰 동물의 티슈를 슬라이스 하기 위해 설계
  • 티슈의 지름이 최대 165 ㎜ 인 인간의 뇌 슬라이스가 가능
  • 뇌 전체를 절단해야 하는 신경 해부학 및 신경 병리학 실험에 용이
  • 티슈를 40 ㎛ 까지 슬라이스 가능
  • Auto Zero-Z® 기술로 직접 Z 축 튜닝을 할 필요가 없음
  • 특허받은 압축 기술

VF-900-0Z 의 적용 가능 분야 :

  • 면역조직화학

VF-900 의 Technical Spec :

Technical Specification VF-900-0Z
Advance Speed 0-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 0.4 ㎜, fixed
Z-axis Vibration < 5 ㎛
Blade tungsten carbide
Cutting Angle 20 degrees,
fixed(standard)
Thickness Adjustment digital/automatic
Slice Thickness
Resolution		 2 ㎛
Tissue Diameter 170 ㎜
Maximum Tissue
Length		 120 ㎜
Slice Thickness 40 ㎛ (Min.)
500 ㎛ (Max.)
Cutting Mode Single/ Continuous
selectable
Bath 730 x 250 x 45 ㎜
Power Source DC 13-15 V
Power Consumption  8 W
Dimension ( L x W x H ) 760x 430 x 450 ㎜
Weight 30 ㎏

Down load  Technical Specification_VF-900-0Z

VF-900-0Z 부품 :

VF-900-0Z  소모품 :



VF-900-0Z



The VF-900-0Z is designed for sectioning the tissue of larger animals. With a diameter of up to 165 mm, it allows the sectioning of human brains.  Many neuroanatomy and neuropathology experiments require sectioning entire brains from these animals. The VF-900-0Z is capable of sectioning slices for these tissues down to 40 microns.
With our patented compression technology, this fully automated slicer excels at sectioning slices used for:

The Compresstome® is also easy to use. Our online training videos will allow everyone in your lab to produce excellent slices.



How is the Compresstome® different from a vibratome?  You can read about a discussion thread on ResearchGate on selecting the best tissue sectioning tool for you.

The Compresstome® is also the best machine to cut adult and senior brain slices.  The paper and the associated protocol can be found in Brain Slice Methods.





Products we recommend to purchase with VF-900-0Z:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:



Down load  Technical Specification_VF-900-0Z



Vibratome

VF-800-0Z Vibratome

CompresstomeⓇ VF-800-0Z 의 특징 :

  • 큰 동물의 티슈를 슬라이스 하기 위해 설계
  • 티슈의 지름이 최대 95 ㎜ 인 고양이, 개, 돼지 및 원숭이의 뇌 슬라이스가 가능
  • 뇌 전체를 절단해야 하는 신경 해부학 및 신경 병리학 실험에 용이
  • 티슈를 40 ㎛ 까지 슬라이스 가능
  • Auto Zero-Z® 기술로 직접 Z 축 튜닝을 할 필요가 없음
  • 특허받은 압축 기술

VF-800-0Z 의 적용 가능 분야 :

  • 면역조직화학

VF-800 의 Technical Spec :

Technical Specification VF-800-0Z
Advance Speed 0-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 0.4 ㎜, fixed
Z-axis Vibration < 4 ㎛
Blade tungsten carbide
Cutting Angle 20 degrees,
fixed(standard)
Thickness Adjustment digital/automatic
Slice Thickness
Resolution		 2 ㎛
Tissue Diameter 75 ㎜, 100 ㎜, 125 ㎜,
150 ㎜
Maximum Tissue
Length		 150 ㎜
Slice Thickness 40 ㎛ (Min.)
500 ㎛ (Max.)
Cutting Mode Single/ Continuous
selectable
Bath 350 x 180 x 45 ㎜
Power Source AC 100-110 V, 200-240 V
Power Consumption  8 W
Dimension ( L x W x H ) 480 x 480 x 450 ㎜
Weight 15 ㎏

Down load  Technical Specification_VF-800-0Z

Training  Videos :

Compresstome VF-800-0Z

VF-800-0Z 부품 :

VF-800-0Z  소모품 :



VF-800-0Z



The VF-800-0Z is designed for sectioning the tissue of larger animals.  With a diameter of up to 95 mm, it allows the brain sectioning of cat, dogs, pigs, and monkeys.  Many neuroanatomy and neuropathology experiments require sectioning entire brains from these animals. The VF-800-0Z is capable of sectioning slices for these large primates down to 40 microns.
With our patented compression technology, this fully automated slicer excels at sectioning slices used for:

How is the Compresstome® different from a vibratome?  You can read about a discussion thread on ResearchGate on selecting the best tissue sectioning tool for you.

The Compresstome® is also the best machine to cut adult and senior brain slices.  The paper and the associated protocol can be found in Brain Slice Methods.

Products we recommend to purchase with VF-800-0Z:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:



Down load  Technical Specification_VF-800-0Z



Vibratome

VF-700-0Z Vibratome

 CompresstomeⓇ VF-700-0Z 의 특징 :

  • 고정된 티슈의 슬라이스를 위한 특별한 디자인
  • 21 ㎜ 의 지름으로 더 넓은 티슈에 사용이 가능
  • 완벽하게 자동화된 슬라이스 기술
  • 면역 조직 화학의 얇고 부드러운 티슈 제작
  • Auto Zero-Z® 기술로 직접 Z 축 튜닝을 할 필요가 없음
  • 특허의 슬라이스 기술을 통해 티슈의 생존 능력을 두 배로 높임
  • 편리한 사용

VF-700-0Z 의 적용 가능 분야 :

  • 면역조직화학

VF-700 의 Technical Spec :

Technical Specification VF-700-0Z
Advance Speed 0-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 0.3 ㎜, fixed
Z-axis Vibration ~0 ㎛
Blade ceramic blades
Cutting Angle 20 degrees,
fixed(standard)
Thickness Adjustment digital/automatic
Slice Thickness
Resolution		 1 ㎛
Tissue Diameter 22 ㎜ (Max.)
Maximum Tissue
Length		 25 ㎜
Slice Thickness 10 ㎛ (Min.)
250 ㎛ (Max.)
Cutting Mode Single/ Continuous
selectable
Bath 210 x 80 x 35 ㎜
Power Source DC 13-15 V
Power Consumption 4 W
Dimension ( L x W x H ) 300 x 280 x 280 ㎜
Weight 9 ㎏

Down load  Technical Specification_VF-700-0Z

Training  Videos :

Video Demo
How to change blade
Tissue embedding & slicing

VF-700-0Z 부품 :

VF-700-0Z  소모품 :





VF-700-0Z



The VF-700-0Z is designed specifically for sectioning fixed tissues.  With a wider diameter of 21 mm, it can accommodate both rat and mice brains.  With our patented compression technology, this fully automated slicer excels at sectioning slices used for:

Our slicer technology allows you to double your slice viability.  The Compresstome® is also easy to use. Our online training videos will allow everyone in your lab to produce excellent slices.





Products we recommend to purchase with VF-700-0Z:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:



Down load  Technical Specification_VF-700-0Z





Vibratome

VF-200 Vibratome

Compresstome® VF-200 Vibrating Microtome

CompresstomeⓇ VF-200 의 특징 :

  • 엔트리급 Compresstome®
  • 전기 생리학 및 이미징 연구를 위한 생체 조직을 얇게 슬라이스하는 데 사용되는 반자동 조직 슬라이서
  • 특허의 슬라이스 기술을 통해 건강한 티슈의 생존 능력을 두 배로 높임
  • 사용자 친화적인 고속의 슬라이싱 작업



VF-200 의 적용 가능 분야 :

  • 전기생리학
  • 기관형배양
  • 폐의 정밀 절단용

VF-200 의 Technical Spec :

　Technical Specification VF-200
Advance Speed 1-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 2 ㎜, fixed
Z-axis Vibration < 2 ㎛
Blade double edge stainless,
ceramic blades
Cutting Angle 13 degrees,
fixed(standard)
Thickness Adjustment manual
Micrometer Resolution 10 ㎛/div
Maximum Tissue
Diameter		 12.5 ㎜ (standard tube),
15.5 ㎜ (large tube),
6 ㎜ (small tube)
Maximum Tissue
Length		 25 ㎜
Minimum Slice
Thickness		 10 ㎛
Cutting Mode Single
Bath 140 x 60 x 30 ㎜
Power Source DC 13-15 V
Power Consumption 500 mW
Dimension ( L x W x H ) 360 x 210 x 190 ㎜
Weight 5 ㎏

Down load  Technical Specification_VF-200

VF-200 부품 :

VF-200  소모품 :

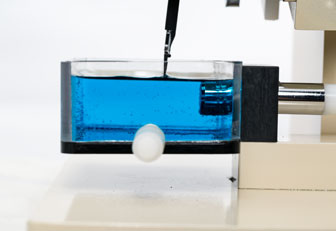

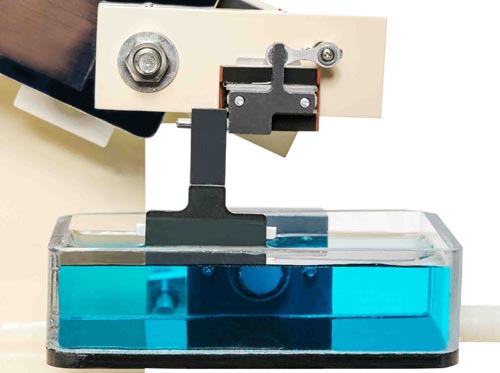

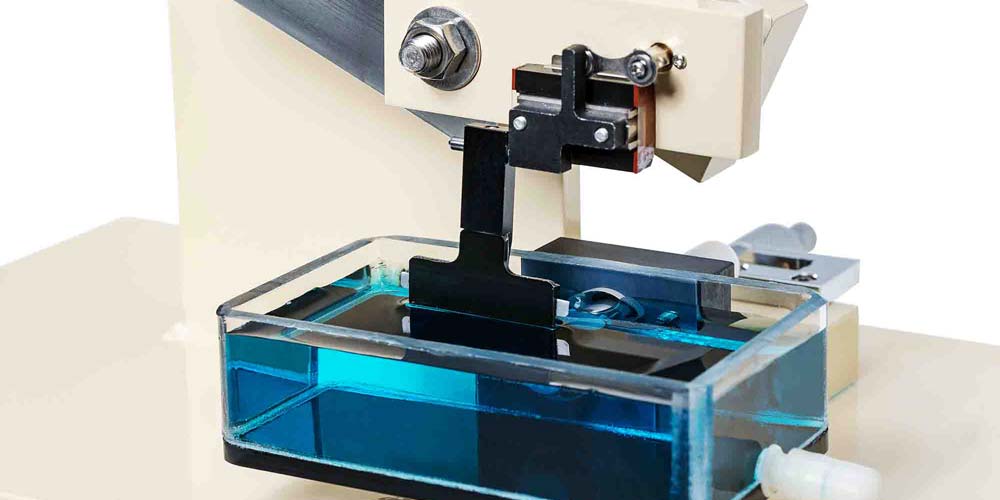

Compresstome® VF-200 vibrating microtome

The VF-200 is our entry level Compresstome®.  With our compression technology, this semi-automated slicer excels at sectioning slices used for:

Our patented slicer technology allows you to double your slice viability for healthier tissue. The Compresstome® produces beautiful sections while providing a fast user-friendly cutting experience. Please refer to our online video tutorials for a step by step visual aid in your Compresstome® experience.

The Compresstome® VF-200 is our best semi-automatic tissue slicer used to section live tissue for electrophysiology and imaging studies. If you are looking to section both fresh and fixed tissue for immunohistochemistry, please explore the VF-300-0Z.

The VF-200 is our semi-automatic tissue slicer most ideal for:

Products we recommend to purchase with VF-200:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:



Down load  Technical Specification_VF-200



Vibratome

VF-200-0Z Vibratome

 CompresstomeⓇ VF-200-0Z 의 특징 :

  • 엔트리급 Compresstome®
  • 전기 생리학 및 이미징 연구를 위한 생체 조직을 얇게 슬라이스하는 데 사용되는 반자동 조직 슬라이서
  • 특허의 슬라이스 기술을 통해 건강한 티슈의 생존 능력을 두 배로 높임
  • 사용자 친화적인 고속의 슬라이싱 작업

VF-200-0Z 의 적용 가능 분야 :

  • 전기생리학
  • 기관형배양
  • 폐의 정밀 절단용

VF-200 의 Technical Spec :

Technical Specification VF-200-0Z
Advance Speed 1-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 2 ㎜, fixed
Z-axis Vibration ~0 ㎛
Blade double edge stainless,
ceramic blades
Cutting Angle 13 degrees,
fixed(standard)
Thickness Adjustment manual
Micrometer Resolution 10 ㎛/div
Maximum Tissue
Diameter		 12.5 ㎜ (standard tube),
15.5 ㎜ (large tube),
6 ㎜ (small tube)
Maximum Tissue
Length		 25 ㎜
Minimum Slice
Thickness		 10 ㎛
Cutting Mode single
Bath 140 x 60 x 30 ㎜
Power Source DC 13-15 V
Power Consumption 500 mW
Dimension ( L x W x H ) 360 x 210 x 190 ㎜
Weight 5 ㎏

Down load  Technical Specification_VF-200-0Z

VF-200-0Z 부품 :

VF-200-0Z  소모품 :



Compresstome® VF-200-0Z vibrating microtome

The Compresstome®  VF-200-0Z is our entry level Compresstome®. With our patented compression technology, this semi-automated slicer excels at sectioning slices used for:
Our patented slicer technology allows you to double your slice viability. The Compresstome® is also easy to use, and our online training videos will allow everyone in your lab to produce excellent slices.

The Compresstome VF-200-0Z is best used to section live tissue for electrophysiology and imaging studies. If you are looking to section fixed tissue for immunohistochemistry, please explore the VF-300-0Z.

With our patented compression technology, this semi-automated slicer excels at sectioning slices used for:

Products we recommend to purchase with VF-200-0Z:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:



Down load  Technical Specification_VF-200-0Z



Vibratome

VF-300 Vibratome

CompresstomeⓇ VF-300 의 특징 :

  • Compresstome® 제품군의 주력 제품
  • 완벽하게 자동화된 슬라이스 기술
  • 특허의 슬라이스 기술을 통해 건강한 티슈의 생존 능력을 두 배로 높임
  • 편리한 사용

VF-300 의 적용 가능 분야 :

  • 전기생리학
  • 기관형배양
  • 폐의 정밀 절단용

VF-300 의 Technical Spec :

Technical Specification VF-300
Advance Speed 0-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 2 ㎜, fixed
Z-axis Vibration < 2 ㎛
Blade double edge stainless,
ceramic blades
Cutting Angle 13 degrees,
fixed(standard)
Thickness Adjustment digital adjustment,
automatic
Micrometer Resolution 1 ㎛/step
Maximum Tissue
Diameter		 12.5 ㎜ (standard tube),
15.5 ㎜ (large tube),
6 ㎜ (small tube)
Maximum Tissue
Length		 25 ㎜
Minimum Slice
Thickness		 4 ㎛
Cutting Mode single/ continuous selectable
Bath 140 x 60 x 30 ㎜
Power Source DC 13-15 V
Power Consumption 4 W
Dimension ( L x W x H ) 330 x 240 x 190 ㎜
Weight 7 ㎏
Down load  Technical Specification_VF-300


Training  Videos :

VF-300 Embedding & Slicing
VF-300 Maintenance
VF-300 Changing & aligning Blade
The VF-300 is the workhorse of the Compresstome®family.  With our compression technology, this fully automated slicer excels at sectioning slices used for:
Our slicer technology allows you to double your slice viability. The Compresstome®  is also easy to use. Our online training videos will allow everyone in your lab to produce excellent slices.

Electrophysiology at The Allen Institute

At Precisionary Instruments, we aim to push the boundaries of scientific research. That’s why we love to see how scientists find new ways to use our products.

At the Allen Institute, the “open science” concept pairs neuroscientists with system engineers to come up with innovative ideas and conjure them into existence. We are proud that the Compresstome® can be part of this project, helping the scientists work with both mouse brains as well as human brain tissues.

Products we recommend to purchase with VF-300-0Z:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:



Down load  Technical Specification_VF-300



Vibratome

VF-300-0Z Vibratome

 CompresstomeⓇ VF-300-0Z 의 특징 :

  • 최신의 vibratome 기술의 진보
  • 특허받은 압축 기술을 통해 경쟁사보다 우위를 확보
  • 아가로 오스(Agarose) 삽입 과정에서 부드럽고 균일한 압축은 섹셔닝 중에 티슈를 안정화
  • 부드럽고 건강한 티슈 제작
  • Auto Zero-Z® 기술로 직접 Z 축 튜닝을 할 필요가 없음

VF-300-0Z 의 적용 가능 분야 :

  • 전기생리학
  • 면역조직 염색
  • 기관형배양
  • 폐의 정밀 절단용

VF-300 의 Technical Spec :

Technical Specification VF-300-0Z
Advance Speed 0-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 2 ㎜, fixed
Z-axis Vibration ~0 ㎛
Blade double edge stainless,
ceramic blades
Cutting Angle 13 degrees,
fixed(standard)
Thickness Adjustment digital adjustment,
automatic
Micrometer Resolution 1 ㎛/step
Maximum Tissue
Diameter		 12.5 ㎜ (standard tube),
15.5 ㎜ (large tube),
6 ㎜ (small tube)
Maximum Tissue
Length		 25 ㎜
Minimum Slice
Thickness		 4 ㎛
Cutting Mode single/ continuous selectable
Bath 140 x 60 x 30 ㎜
Power Source DC 13-15 V
Power Consumption 4 W
Dimension ( L x W x H ) 330 x 240 x 190 ㎜
Weight 7 ㎏

Down load  Technical Specification_VF-300-0Z

VF-300-0Z 부품 :

VF-300-0Z  소모품 :





The VF-300-0Z Compresstome® from Precisionary Instruments represents the latest advances in vibratome technology. Our patented compression technology enables our vibratome to overpower the competition. This gentle, uniform compression from the agarose embedding process helps to stabilize the tissue during sectioning and allows our vibratome to produce smoother and healthier slices than the competition. The VF-300-0Z is ideal for electrophysiology, immunohistochemistry, Precision-cut tissue slices, and organotypic cultures.



The main advantages of the Compresstome® include:

  • Patented compression technology and agarose embedding process stabilizes tissue and eliminates chattermarks
  • Slices over 5x faster than other market Vibratomes
  • Preserves surface neurons yielding over 2x healthy/dead cell ratios and significantly improving patch clamping results for electrophysiology
  • Slice thickness ranging from 4 μm-2000μm
  • No freezing needed! Allowing for free-floating staining for better IHC – lmmunohistochemistry results
  • Fully automated slicing, so no more tedious cryostat cranking
  • Auto Zero-Z® technology reduces z-axis deflection to <1 μm
  • Light footprint for increased portability
The VF-300-0Z is the Auto Zero-Z® version of our workhorse Compresstome®.  With our compression technology, this fully automated slicer excels at sectioning slices used for:
Our slicer technology allows you to double your slice viability.  The Compresstome® is also easy to use. Our online training videos will allow everyone in your lab to produce excellent slices.

Electrophysiology at The Allen Institute

At Precisionary Instruments, we aim to push the boundaries of scientific research. That’s why we love to see how scientists find new ways to use our products.

At the Allen Institute, the “open science” concept pairs neuroscientists with system engineers to come up with innovative ideas and conjure them into existence. We are proud that the Compresstome® can be part of this project, helping the scientists work with both mouse brains as well as human brain tissues.

Products we recommend to purchase with VF-300-0Z:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:



Down load  Technical Specification_VF-300-0Z
