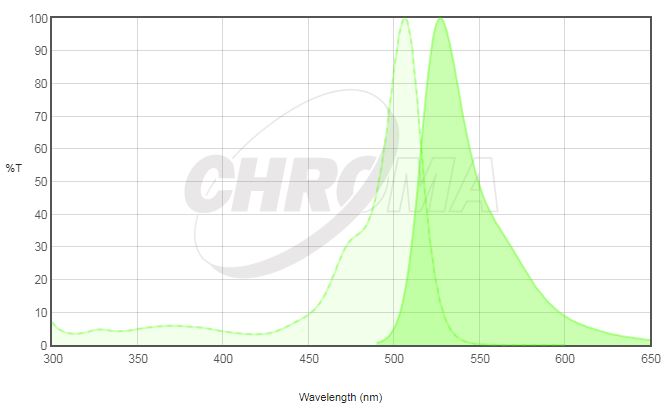

Spectrum Chart
Fluo-3 Spectrum
| Excitation (㎚) | Emission (㎚) |
| 505 | 526 |
Recommended Filter
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49003 | 500/20 (490~510) |
515 (LP) | 540/30 (525~555) |
Narrow Excitation band, Bandpass Emission |
| 49011 | 480/40 (460~500) |
510 (LP) | 535/50 (510~560) |
Wide Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49904 | 488/10 (483~493) |
488 (LP) | 525/50 (500~550) |
For use with laser between 485~491㎚
Very Narrow Excitation band, |
