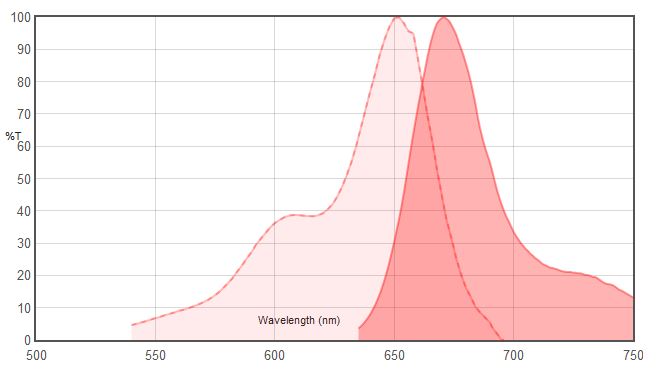

Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 649 | 670 |
Recommended Filter set
-
일반 형광 Lighting source
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| JNO-R2(B) | 620/50 (595~645) |
655 (LP) | 690/50 (665~715) |
Wide Excitation band, Bandpass Emission |
| 49006 | 620/60 (590~650) |
660 (LP) | 700/75 (662.5~737.5) |
Very Wide Excitation band, Bandpass Emission |
| 49009 | 640/30 (625~655) |
660 (LP) | 690/50 (665~715) |
Medium Excitation band, Bandpass Emission |
-
레이저 Lighting source
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49913 | 635/20 (625~645) |
640 (LP) | 655(LP) | For use with laser between 627~643㎚
Narrow Excitation band, |
| 49914 | 642/20 (632~652) |
647 (LP) | 705/72 (669~741) |
For use with laser between 633~650㎚
Narrow Excitation band, |
Information
Cy5 dye is a bright, far-red-fluorescent dye that can be excited using the 633 or 647 ㎚ laser lines, and visualized Cy5 filter sets. In addition to immunocytochemistry applications, Cy5 is also commonly used to label nucleic acids.
Cy5 염료는 633 또는 647 ㎚ 레이저 라인을 사용하여 여기되고 Cy5 필터 세트를 시각화 할 수있는 밝은 원색 – 형광 염료로서 면역 세포 화학 응용뿐만 아니라 핵산 표지에도 일반적으로 사용됩니다.
