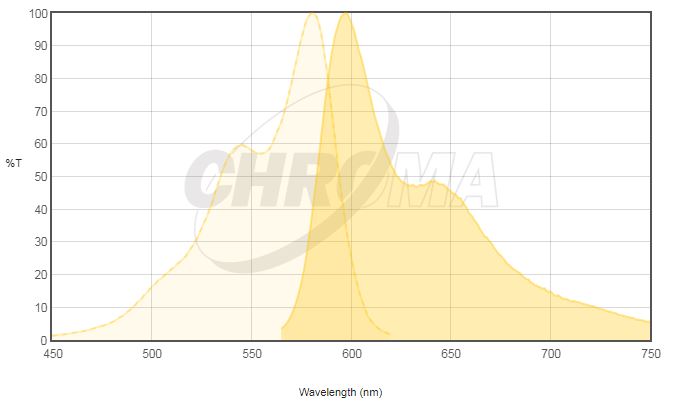

Spectrum Chart
Cy3.5™ Spectrum
| Excitation (㎚) | Emission (㎚) |
| 581 | 598 |
Recommended Filter Set
-
일반 형광 Lighting source
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| JNO-R1(B) | 560/40 (540~580) |
600 (LP) | 635/60 (605~665) |
Wide Excitation band, Bandpass Emission |
| 49008 | 560/40 (540~580) |
600 (LP) | 630/75 (592.5~667.5) |
Wide Excitation band, Bandpass Emission |
| 49031 | 569/25 (556.5~581.5) |
588 (LP) | 615/40 (595~635) |
Narrow Excitation band, Bandpass Emission |
-
레이저 Lighting source
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49909 | 561/10 (556~566) |
532 (LP) | 600/50 (575~625) |
For use with laser between 529~535㎚
Very Narrow Excitation band, |
| 49910 | 561/10 (556~566) |
514 (LP) | 630/70 (595~665) |
For use with laser between 557~563㎚
Very Narrow Excitation band, |
