JNOPTIC Filter 49906
Download Catalog_49906

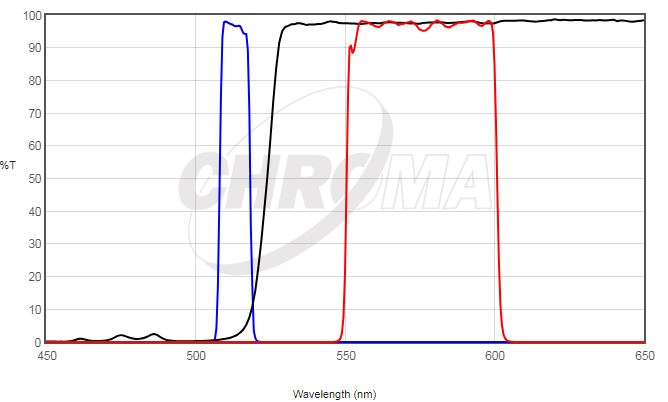

49906 Spectrum
| Filters | Type |
| ZET514/10x | EX |
| ZT514rdc | BS |
| ET575/50m | EM |
– Filter set of 514nm Laser Bandpass Set for mKO, mOrange2
For use with lasers between 511-517㎚
- Main Fluorochromes : AlexaFluor 514
| Excitation (㎚) | Emission (㎚) |
| 517 | 539 |

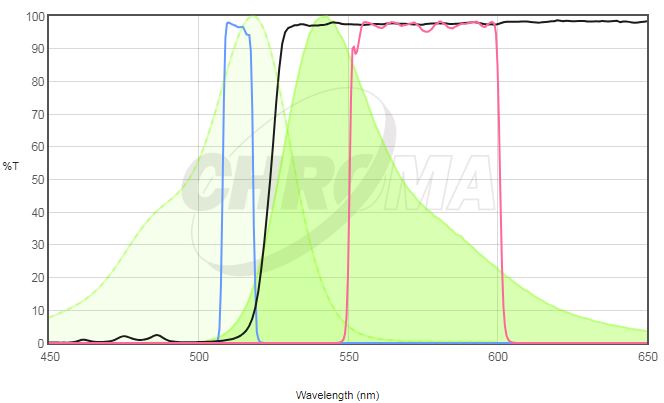

Spectrum Comparison Fluor and 49906
49906 Spec
- Typical Application(s) : Laser (Non-TIRF)
- Coating : Sputter/Hard Coated
- Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
- Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
