How to Measure Height
How to Measure Height by JNO-MHU
Right Image : Measurement of Z axis(height value) Z= 288㎛
Heigh Measurement for Microscope
by JNO-MHU & JNO-ARM
| Certificate of Patent | Go to Main Page |

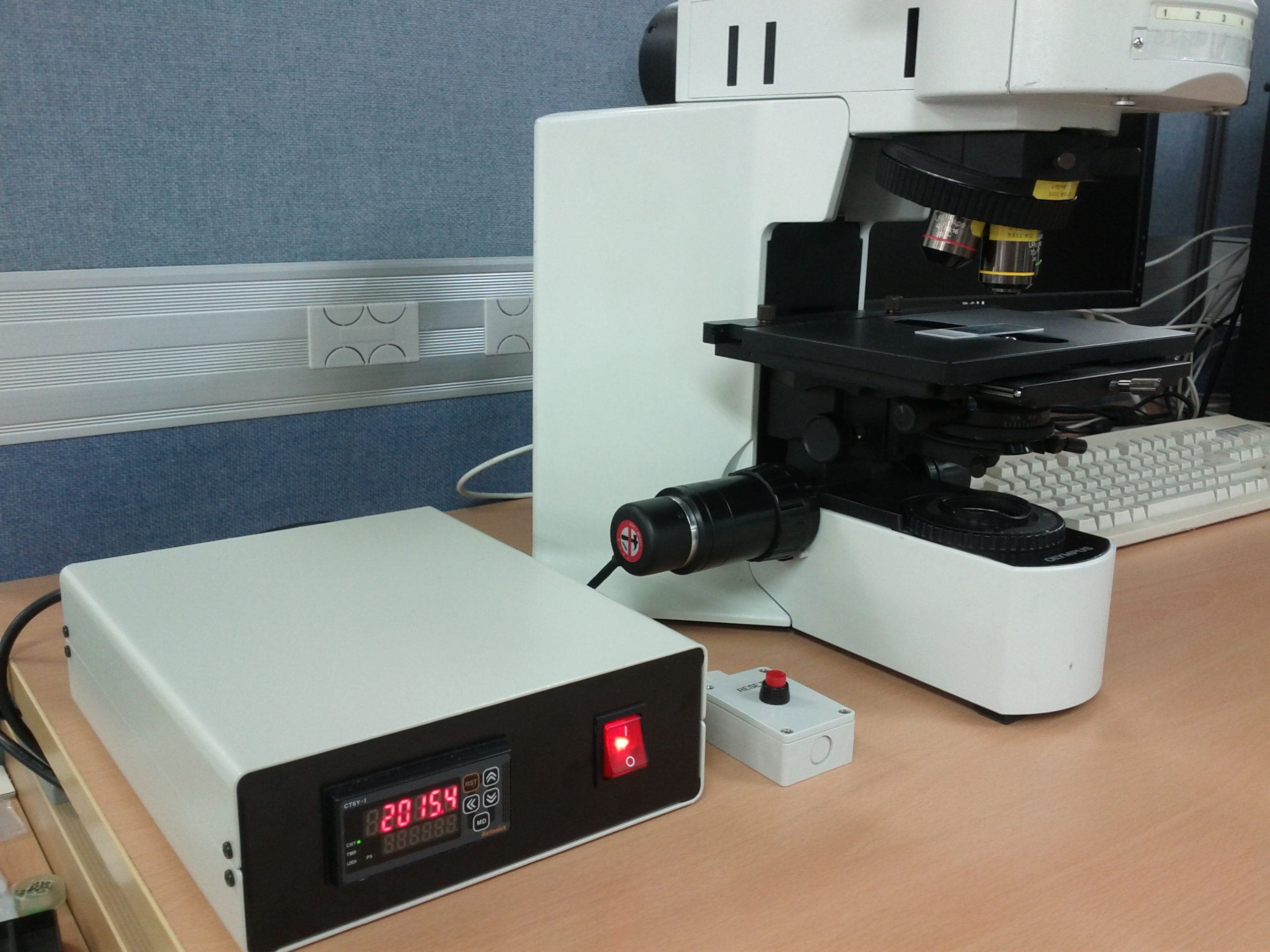

JNO-MHU
JNO-MHU(Height Measuring Unit)
JNO-MHU is equipment to measure the height of sample, equipped with Z-axis stage handle. It could be equipped easily with new purchasing or existing microscope

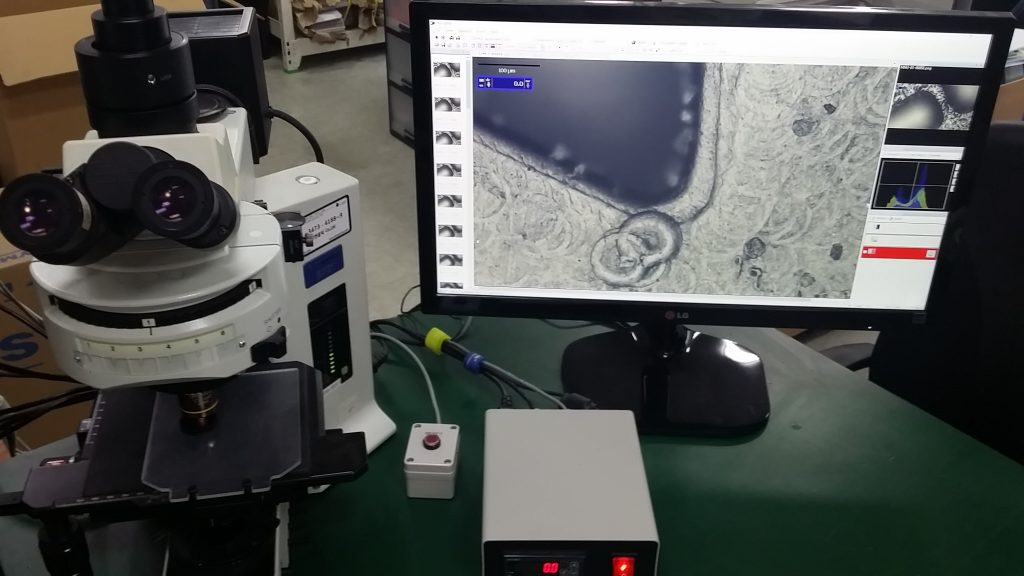

Screen Capture Image ( JNO-ARM )
< Consist of >
Responding Model |
Measurement value unit |
Recommended measuring height |
CX 41 |
0.2 ㎛ |
Below ± 2000㎛ |
CKX 41 |
0.2 ㎛ |
Below ± 2000㎛ |
BX – FM |
0.2 ㎛ |
Below ± 2000㎛ |
BX 51/53 |
0.1 ㎛ |
Below ± 1000㎛ |
MX 51 |
0.1 ㎛ |
Below ± 1000㎛ |
MX 61L/61 |
0.1 ㎛ |
Below ± 1000㎛ |
HOW TO MEASURE BY JNO-MHU
