Camera, Fluorescence

AcquCAM Silver3

AcquCAM Silver3

(Down load Catalog_ACQUCAM SILVER3)

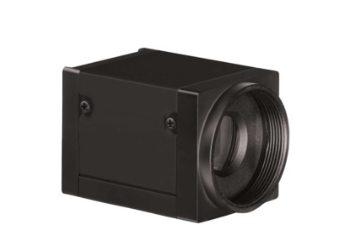

AcquCAM Silver3



 AcquCAM Silver3 camera has 1/1.8 CCD Color Sensor with USB 3.0 and works with resolution of 1600×1200 @ 20fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD USB 3.0 camera
  • High sensitive monochrome
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Apply Pseudo color for live fluorescence

Increased resolution by applying PSEUDO COLOR function when observing fluorescence image.
Increased resolution by applying PSEUDO COLOR function
when observing fluorescence image.



Apply Pseudo color for live fluorescence

Shooting images of fluorescence sample
Shooting images of fluorescence sample



Emphasis function on variety of images



Getting fast and clear image  with general light source

Shooting by stereo microscope and LED lighting source
Shooting by stereo microscope and
LED lighting source



[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats

& Frame rate

 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.05 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g
