Vibratome

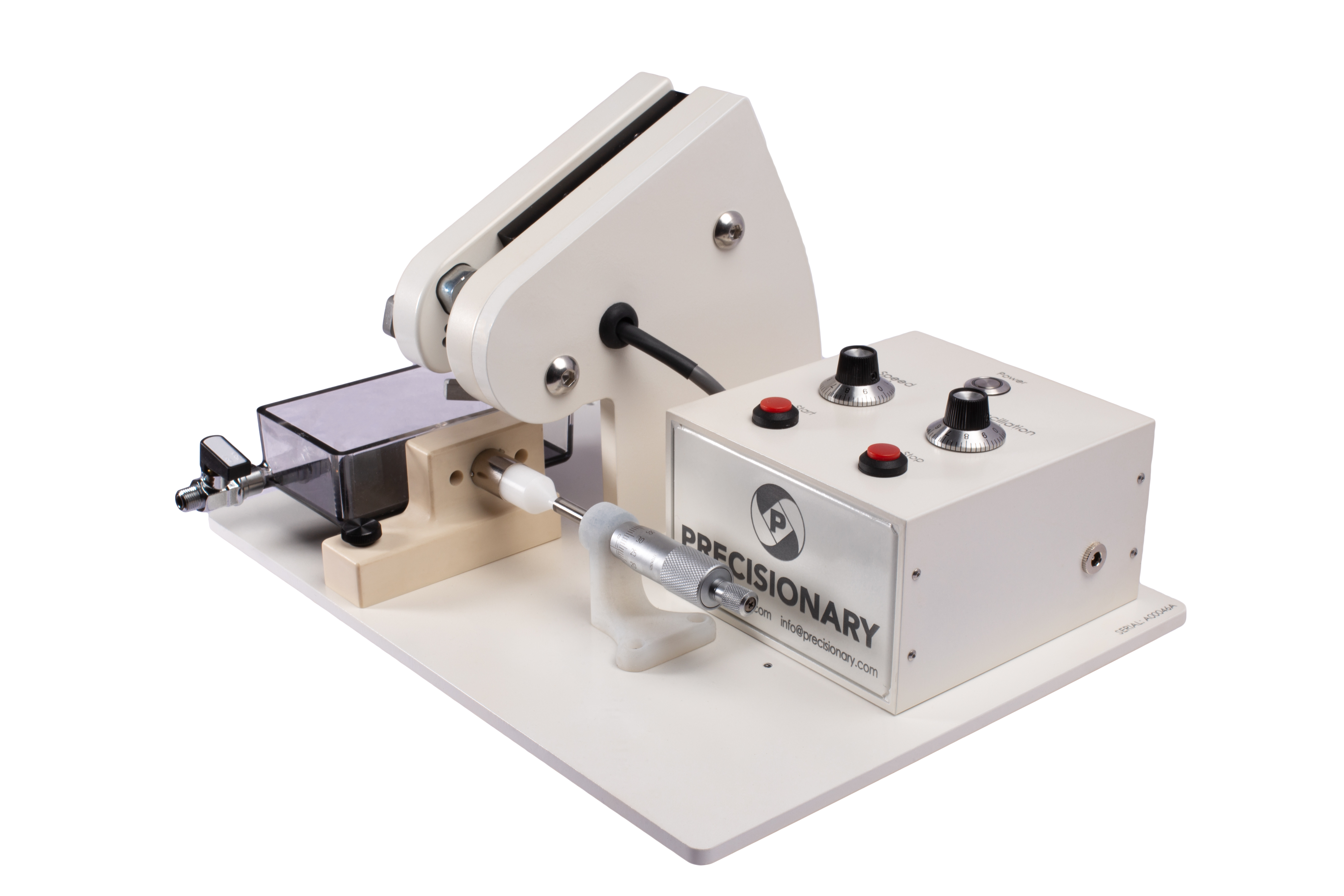

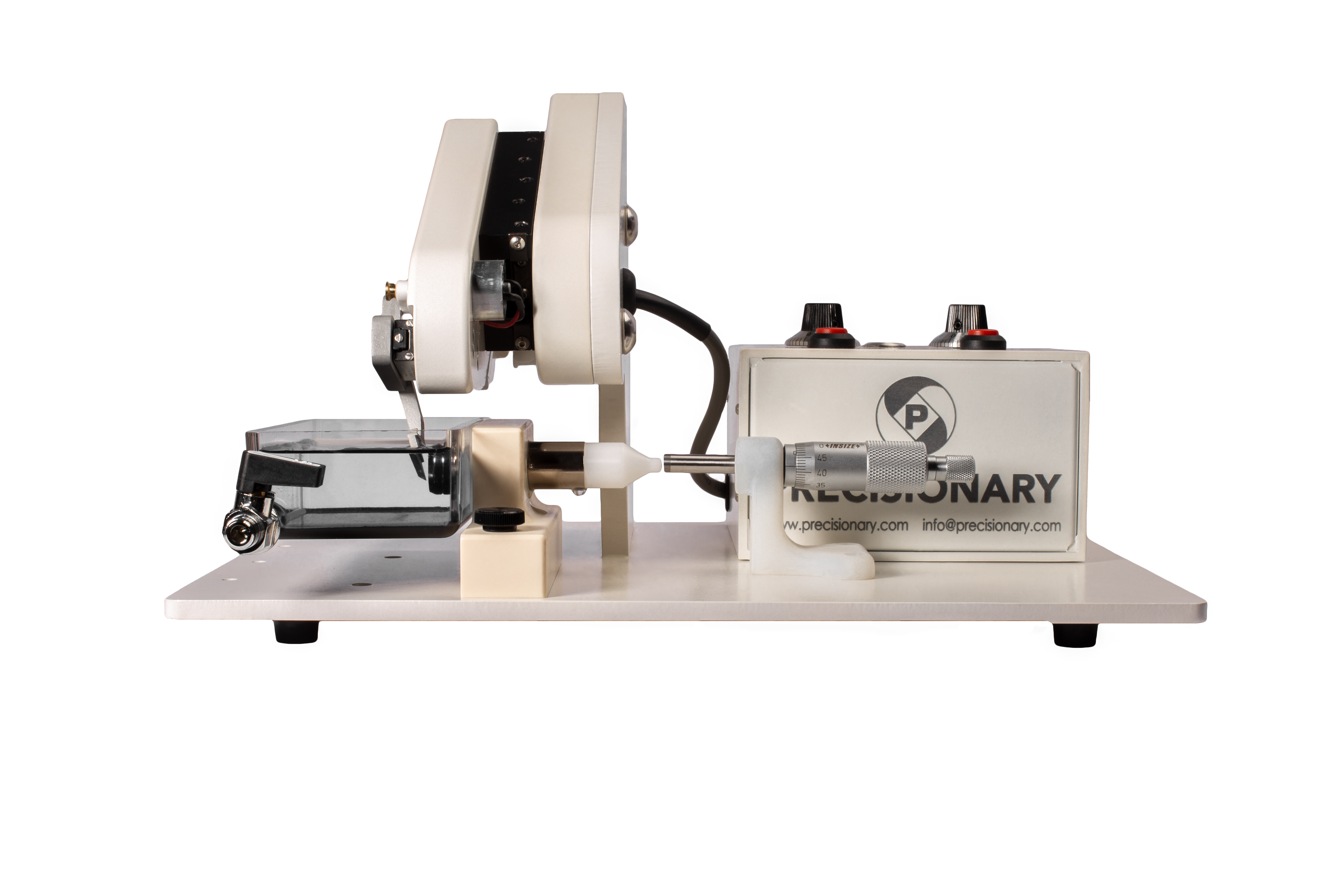

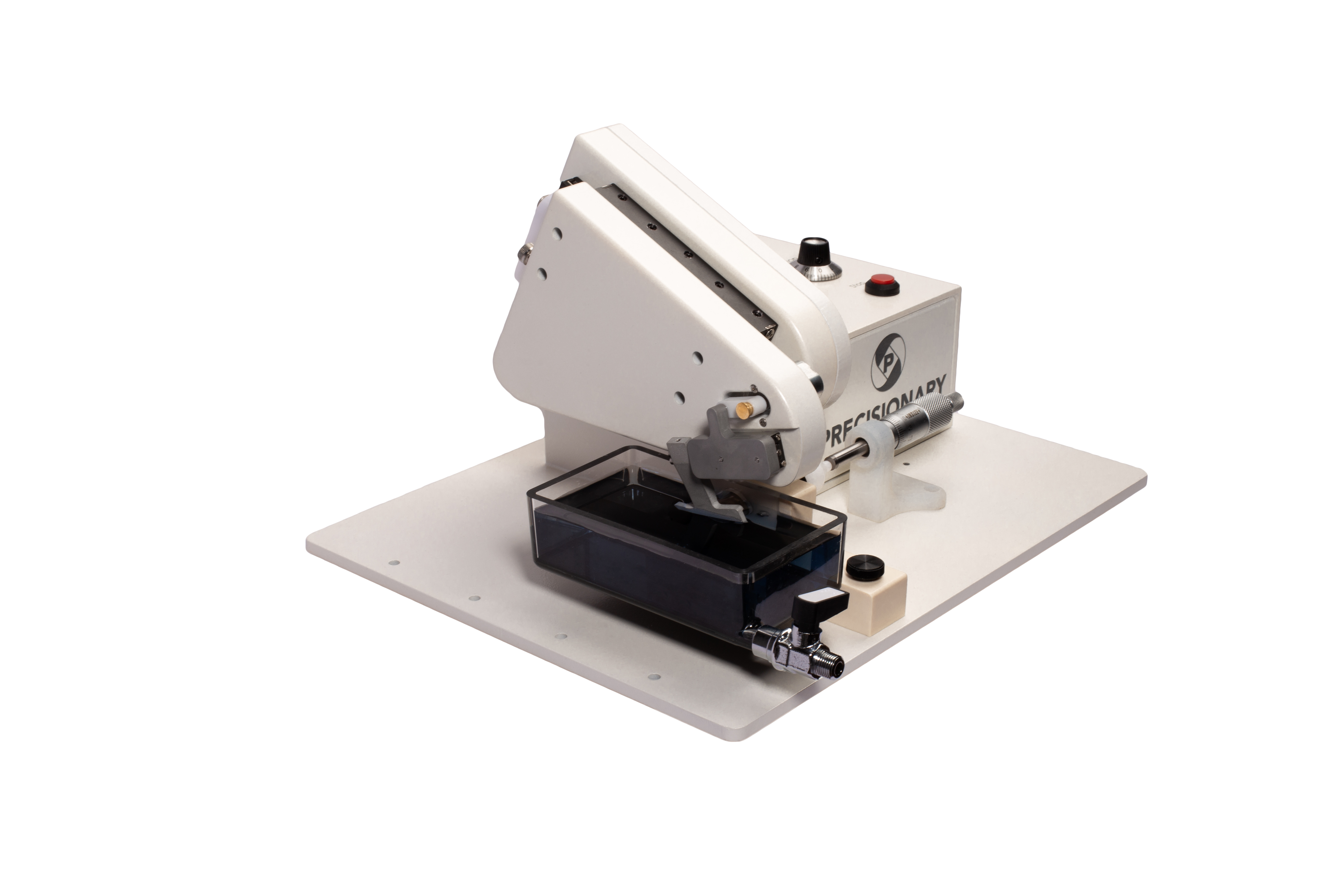

VF-210-0Z Vibratome

Compresstome® VF 210-0Z Vibrating Microtome

CompresstomeⓇ VF-210-0Z 의 특징 :

  • Live 티슈 및 고정된 tissue 모두 절단 가능
  • 절단 중 Z축으로의 이동을 제거하는 Auto Zero-Z 특허 기술
  • 일관되고 균일한 슬라이스 제작
  • 버퍼 트레이의 이동으로 간편한 세척이 가능
  • 블레이드 홀더의 탈착이 쉬움 (수동 얼라인먼트가 필요없음)
  • 직경 20mm 까지의 tissue  절단 가능
  • 사용하기 쉬운 컨트롤이 있는 단일 박스
  • 슬라이스 두께 : 10µm~ 1000µm ( 1µm 정밀도)
  • 슬라이스 넘버 카운터
  • 토탈 슬라이스 두께 카운터
  • 내구성을 위한 고품질의 디자인
  • 채터 마크 제거





CompresstomeⓇ VF-210-0Z 의 차별성 :

(VF-200 Series 및 VF-300 Series와 비교)

  • 손잡이 나사를 이용하여 버퍼 트레이를 쉽게 제거 가능
  • 블라이드의 얼라인먼트가 고정되어 있음(수동으로 얼라인할 필요가 없습니다.)
  • 컨트롤 박스가 슬라이서 받침대에 단일 유닛으로 부착되어 있음.
  • 큰 튜브 사이즈 (직경 20mm 까지)
  • 진동 헤드 커버 (장비 보호 및 내구성 향상)

 VF-210-0Z과 VF-310-0Z 의 차별성 :

  • VF-310-0Z는 완전 자동화인 반면, VF-210-0Z는 섹션 간 수동 두께 조절이 필요한 반자동입니다.

VF-210-0Z 의 적용 가능 분야 :

  • 전기생리학 : brain slices, cardiac or myocardiac recordings, and kidney slices
  • 면역조직화학 : 4µm 만큼 얇은 고정 tissue 용
  • 기관형배양 : cultured slice experiments
  • 정밀절단 : lung, liver, kidney, spleen slices
  • 이미징 : slices 의 형광 이미지
  • 인시투하이브리디제이션 : RNA 검출
  • 전자현미경 : 마이크로아키텍쳐와 세포 해부학에 관한 연구

VF-210-0Z 의 Technical Spec :

　Technical Specification VF-210-0Z
Advance Speed 0-20 ㎜ / s, adjustable
Return Speed 20 ㎜/s
Vibration Frequency 0-20 Hz, adjustable
Vibration Amplitude 2 ㎜
Z-axis Vibration ~0 ㎛
Blade stainless steel, ceramic,             tungsten carbide,
sapphire diamond
Cutting Angle 15 degrees,
(no need for blade alignment)
Thickness Adjustment manual
Micrometer Resolution 1  ㎛
Maximum Tissue
Diameter		 12.5 ㎜ (standard)
20㎜ (extra large)
15.5 ㎜ (large)
6.5㎜ (small)
Maximum Tissue
Length		 25 ㎜
Minimum Slice
Thickness		 10 ㎛
Cutting Mode single
Bath 140 x 60 x 30 ㎜
Power Source 120V AC
Power Consumption 18 W
Dimension ( L x W x H ) 330 x 240 x 190 ㎜
Weight 5 ㎏

Down load  Technical Specification_VF-210-0Z



Filter, Fluorescence

79004

JNOPTIC Filter 79004

ET – Fura 2/GFP

79004 Spectrum

Filters Type
ET340x EX
ET380x EX
ET470/40x EX
T495lpxru BS
ET535/70m EM



79004 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

79003

JNOPTIC Filter 79003

ET – Fura 2/TRITC

79003 Spectrum

Filters Type
ET340x EX
ET380x EX
ET555/25x EX
79003bs BS
79003m EM



79003 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Filter, Fluorescence

79001

JNOPTIC Filter 79001

ET – Fura 2

79001 Spectrum

Filters Type
ET340x EX
ET380x EX
T400lp BS
ET510/80m EM



79001 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

89403

JNOPTIC Filter 89403

ET – 436-28/506-21/578-24/730-40 Multi LED set

Quad band catalog set for Multi LED light engines like those manufactured by Lumencor, CoolLED, Excelitas and Cairn Research. Excitation passbands are matched to discrete, triggerable LEDs appropriate for excitation of CFP/YFP/RFP/Cy7 and similar fluors. Not intended for use with white light sources.

89403 Spectrum

Filters Type
89403x EX
89403bs BS
89403m EM



89403 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: These require the use of filter wheels or sliders, or image-splitting devices to hold multiple individual filters.



Filter, Fluorescence

59217

JNOPTIC Filter 59217

ET – ECFP/EYFP with single band exciters

59217 Spectrum

Filters Type
ET430/24x EX
ET500/20x EX
69008bs  BS
59017m EM



59217 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

59222

JNOPTIC Filter 59222

ET – EGFP/mCherry (or FITC/TxRed) with single band exciters

59222 Spectrum

Filters Type
ET470/40x EX
ET572/35x EX
59022bs  BS
59022m EM



59222 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

59017

JNOPTIC Filter 59017

ET – ECFP/EYFP

59017 Spectrum

Filters Type
59017x EX
69008bs BS
59017m EM



59017 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Filter, Fluorescence

59022

JNOPTIC Filter 59022

ET – EGFP/mCherry (or FITC/TxRed)

59022 Spectrum

Filters Type
59022x EX
59022bs BS
59022m EM



59022 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

89400

JNOPTIC Filter 89400

ET – DAPI/FITC/TRITC/Cy5 Quad with Single Band Exciters

A version of the 89000 Quad set with a quad band emisison filter and four individual excitation filters for use in an external filter housing such as a filter wheel, similar to Chroma’s original Pinkel filter set. Allows for selective excitation of individual fluors in sample containing multiple fluors. Appropriate for live viewing or image acquisition with monochrome or color cameras.

89400 Spectrum

Filters Type
AT350/50x EX
ET402/15x EX
ET490/20x EX
ET555/25x EX
ET645/30x EX
89100bs BS
89101m EM



89400 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: These require the use of filter wheels or sliders, or image-splitting devices to hold multiple individual filters.
